Western Fisher Snow Plow Wiring Harness HB3/H11 Chevy/GMC 3 port 3 plug GM 29400
Price:
$650
Ships From:
Williamsport, Pennsylvania, US
Clicking on links to merchants on this site may result in this site earning a commission.

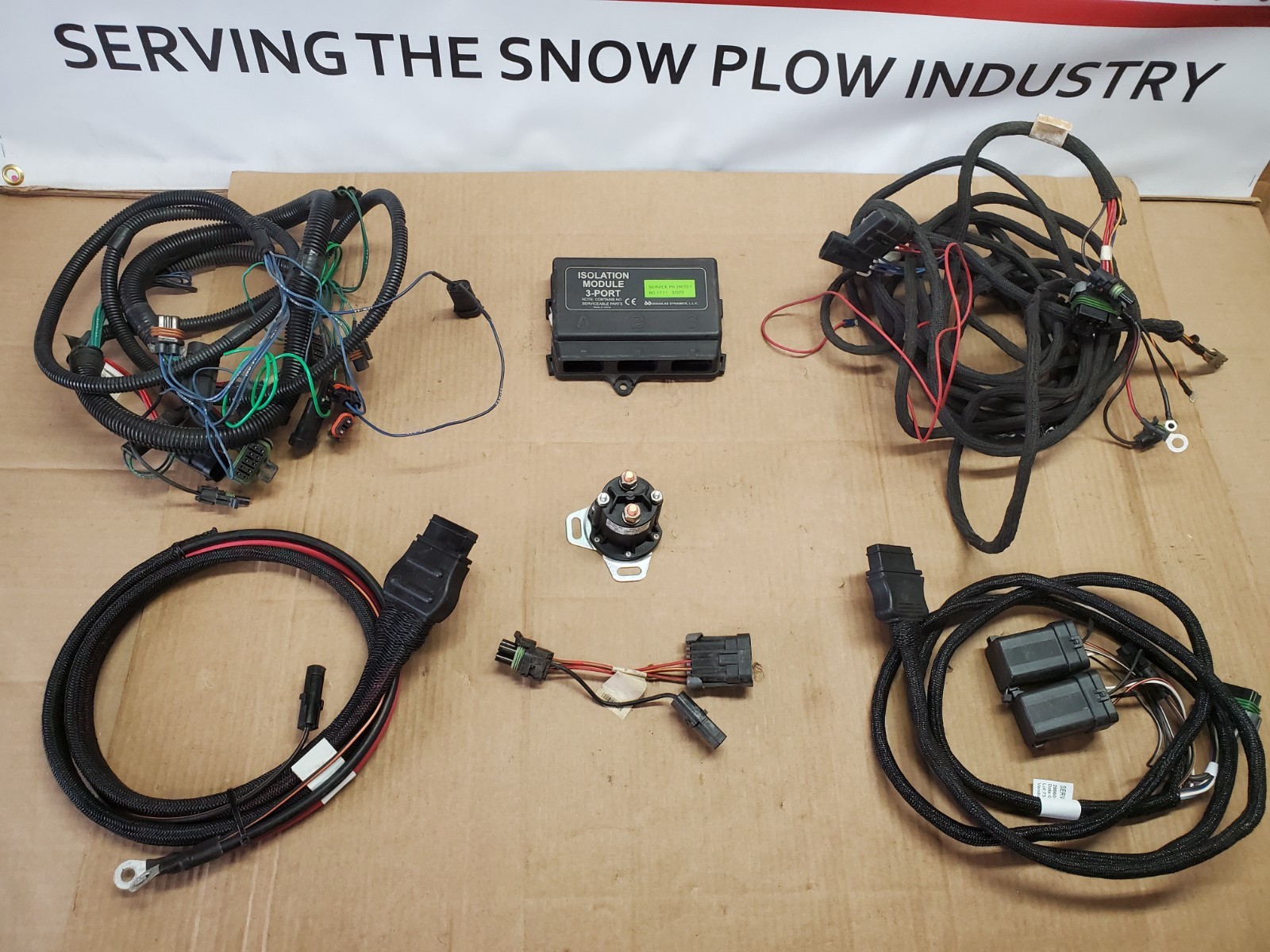

Here is a set of wiring for a Western Ultramount Plow or a Fisher Minute Mount 2. This is for a straight blade setup. It has the 6 hole plug for the handheld or joystick controller. **\*\*\*This is not a Fleet Flex harness.\*\*\*** This harness will not work with Fleet Flex plows. This is a 3 port isolation module with a 3 plug system (battery cable plug, 11 pin headlight plug and 3 pin controller plug). This wiring is for vehicles with HB3/H11 headlight bulbs. Check to make sure your vehicle has HB3/H11 headlight bulbs. **_If your vehicle does not have HB3/H11 bulbs_, this harness will not work for your truck.** This wiring will work for 07 and newer Chevy/GMC trucks that have HB3/H11 headlights. This wiring is in nice shape, but you better have a manuel if you plan to install it yourself. Also the wire running to the ignition fuse may need a new end as well (also simple and inexpensive). BEFORE BUYING, use the Quickmatch feature on Western Website or the eMatch feature on Fisher's website to make sure this is the right harness for your truck. It is the buyers responsibility to confirm fitment before purchasing. Harness was gone over and wiring was tested. Isolation module was tested with the factory tester and works well. The 26345 control harness has a new 3 pin plug, and the 29499 adpater harness has a couple new plugs as well. New plugs are soldered in and then the soldered connection is covered with an adhesive lined heat shrink to seal the connection. Part numbers: The isolation module is part # 29070-1. Controller harness is 26345. Port A is 29861-4 and ports B and C are 29499. There is also adapter 29047 used in this harness and the battery cable is 63411. Part numbers 29499 and 29861-4 make up what would now be kit 29400-5. 29400 is the headlamp harness number that would be given when using Western Quick Match or Fisher eMatch. This wiring was taken off a used truck because they no longer wanted the plow on the truck. Included is the solenoid (new), battery cables, plow harness, and light harness, light adapter harness, and isolation module (what you see in the pictures). Jumper battery cable is not shown in the pictures, but is included. You are buying this setup as is. Thanks for looking. Feel free to ask any questions. Check my other listings for more plow and spreader parts. Free shipping to US only. Return Policy: Please email me with any questions before purchasing the item. Buyer is responsible to independently confirm fitment before ordering. Buyer needs to do their own research before buying. No returns, refunds, or exchanges for parts that have been purchased incorrectly.
- Brand: Western/Fisher
- Other Part Number: 29400
- Manufacturer Part Number: 29070-1 26345 29861 29499 63411 29047
- Country of Origin: United States
