Western Fisher 3 port 3 plug Plow Wiring Harness H13 Ford 04-15 Snow 29049 Dodge
Price:
$650
Ships From:
Williamsport, Pennsylvania, US
Clicking on links to merchants on this site may result in this site earning a commission.

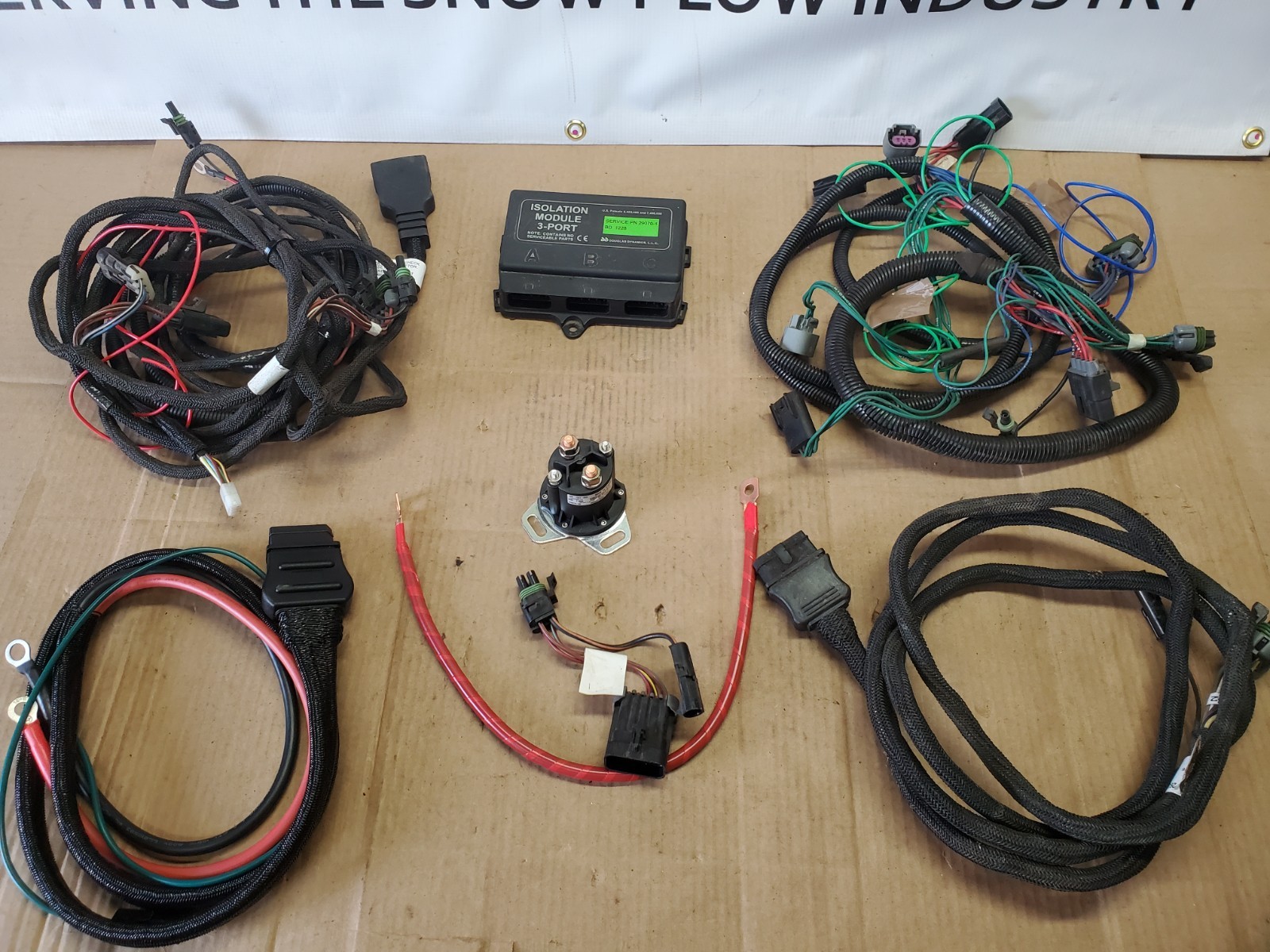

Here is a set of wiring for a Western Ultramount Plow or a Fisher Minute Mount 2. This is for a straight blade setup. It has the 6 hole plug for the handheld or joystick controller. This is a 3 port isolation module with a 3 plug system (battery cable plug, 11 pin headlight plug and 3 pin controller plug that plugs into an 11 hole plug on the plow). Make sure your plow has 3 plugs that would mate with the 3 plugs described and pictured in this listing. \\*\\*\\*_**This is not a Fleet Flex harness.\*\*\***_ This wiring is for vehicles with H13 headlight bulbs. Check to make sure your vehicle has H13 headlight bulbs. If your vehicle does not have H13 bulbs, this harness will not work for your truck. If you would have a vehicle with quad H13 headlights, this would not be the right harness for your truck. This wiring will work for 03-14 Ford F150 trucks that have H13 headlights and 05-16 Ford F250, 350, 450, 550 trucks with H13 headlights. This will also work on 06-15 Dodge trucks with H13 headlights. To check what style headlights you have, take a look at the lens of the headlight from the front of the truck. It should have the headlight stamped on the front of the lens. _**If your truck would require a soft start adapter for the lights, that would have to be purchased separately as none is included.**_ This wiring is in good condition, but you better have a manuel if you plan to install it yourself. Also the wire running to the ignition fuse may need a new end as well (also simple and inexpensive). BEFORE BUYING, use the Quickmatch feature on the Western Website or the eMatch feature on Fisher's website to make sure this is the right harness for your truck. Part numbers: The isolation module is part # 29070-1. Controller harness is 26345. Port A is 26357 and ports B and C are 28986. Battery cable is a new aftermarket replacement and replaces the original 63411 battery cable and solenoid is AM56131K. Battery cable has a green wire running from the black battery cable ring terminal to the plug-on the original 63411 that wire would have been black with an orange strip. There is also adapter 29047 used in this harness. When using Western Quickmatch/Fisher eMatch, it will state that your truck requires headlamp harness 29049, which is a kit that includes harness 26357 (port A) and harness 28986 (ports B and C). The solenoid is brand new and the isolation module has been tested with factory tester. This wiring was taken off a used truck because they no longer wanted the plow on the truck. Included is the solenoid, battery cables, plow control harness, and light harness and headlight adapters, and isolation module (what you see in the pictures). You are buying this setup as is. What you see in the pictures is what you will be receiving. Thanks for looking. Feel free to ask any questions. Check my other listings for more plows and spreader parts. Free shipping to US only. Return Policy: Please email me with any questions before purchasing the item. Buyer is responsible to independently confirm fitment before ordering. Buyer needs to do their own research before buying. No returns, refunds, or exchanges for parts that have been purchased incorrectly.
- Brand: Western/Fisher
- Other Part Number: 29049 56131 63411
- Manufacturer Part Number: 29070-1 26345 26357 28986 29047
- Country of Origin: United States
