Used GlowShift W7 Diesel Gauge Set - 60 Boost, 1500 EGT, Trans Temp, Fuel Press

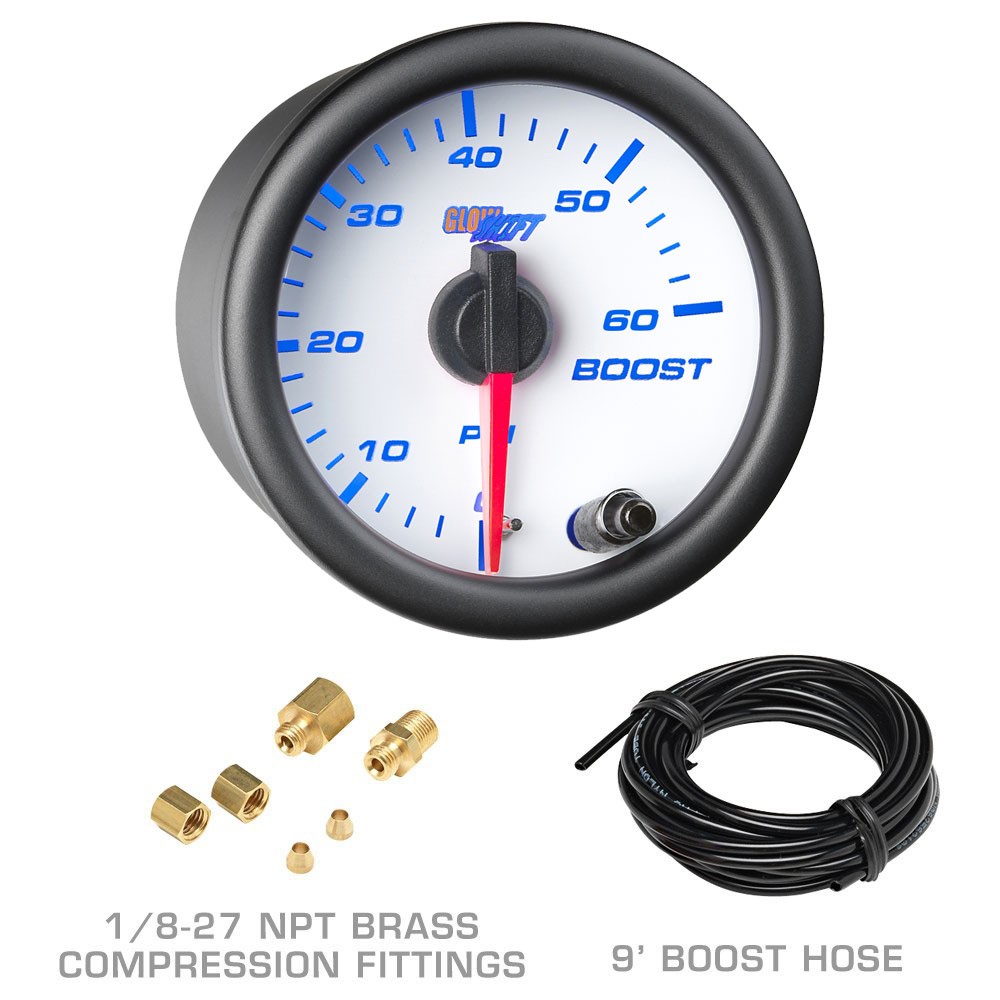

This diesel gauge set includes 60 PSI Boost, 1500° F Pyrometer EGT, Transmission Temperature and 100 PSI Fuel Pressure Gauges that come complete with all necessary sensors, fittings and wiring harnesses needed to obtain those critical readings. **White 7 Color Series Features** Each included diesel gauge features a white gauge face with an illuminated red needle and clear lens. Each gauge features a diameter of 2-1/16 (52mm), allowing you to mount them to your trucks A-pillar in a quad gauge pillar pod or on the dashboard. Pressing the button on the gauge allows you to choose from 7 different solid colors to match your factory dashboard lights. The featured 7 colors include blue, green, red, white, yellow, purple and teal, as well as 2 color cycle modes that utilize each color. Connecting these gauges to the factory headlight switch source allows the gauges to dim 30% for an easier viewing experience when driving at night. **GlowShifts Guarantee** Glowshift includes installation instructions, free lifetime technical support and a 60 day limited warranty with each purchase. ### Breakdown of Included Gauges: **60 PSI Boost** The Boost Gauge reads your diesel trucks turbo pressure from 0 to 60 PSI by using the included 1/8-27 NPT brass compression fittings and 9 of nylon boost hose that install to the intake manifold. This mechanical boost gauge is vital to ensure your turbo is performing at an optimum level and not over-boosting which could cause critical engine damage. **1500° F Pyrometer EGT Gauge** The Exhaust Gas Temperature Gauge reads from 0° to 1500° Fahrenheit using the included type K thermocouple EGT probe that features 1/8-27 NPT threads and 3 of steel braided cable with a waterproof connector. This electronically driven EGT gauges probe installs to the exhaust manifold by drilling and tapping a hole to 1/8-27 NPT using GlowShifts Drill and Tap Kit. The included sensor wire harness features steel braided cable, a waterproof connector and an extended length of 6 to ensure you will have more than enough wire to reach from the exhaust manifold to the back of the gauge. **Transmission Temperature Gauge** The Transmission Temperature Gauge reads transmission fluid temperature from 80° to 260° Fahrenheit with the included electronic 1/8-27 NPT sensor that installs to the test port or cooler feed line. This gauge is perfect for the diesel truck owner who is pushing the truck to its limits by towing heavy loads over long distances and wants to keep a close eye on those vital temperatures. **100 PSI Fuel Pressure Gauge** The Fuel Pressure Gauge reads from 0 to 100 PSI with the included electronic 1/8-27 NPT pressure sensor that installs to the fuel filter housing to obtain readings directly from the source. The included sensor wire harness features an extended length of 9 to ensure you have more than enough wire that reaches from the fuel filter to the back of the gauge. This gauge is vital for viewing the performance of your fuel system in real time. Low fuel pressure levels could result in a loss of horsepower or damage to the fuel pump and injectors. {{2014-LIKENEW}} 60 Day Warranty 60 Day Warranty Warranty Claims Payment Shipping Contact Us #### 60 Day Warranty ``` All GlowShift performance products sold on GlowShift_Outlet come with a 60 Day limited warranty on the internal parts of the product.This warranty starts at the date of purchase. GlowShift will replace or repair any qualifying defective product received by the company before the end of the warranty period.Installation of this product must be performed by a licensed professional. Should the failure of the product be the result of damage occurring as a result of improper installation, alteration of the product or an act or omission on the part of the consumer, this warranty is void.The specific warranty on the repaired part only (not including gauge sensors) shall be in effect for a period of sixty (60) days following the repair or replacement of that part.Improper installation may cause damage to the product and any vehicle in which it is installed, and may cause burns and electrical injury to individuals.GlowShift does not cover any damages that are the fault of a professional installer. If your product is found to be defective after it is installed GlowShift will cover the product, but will not cover any incurred installation fees.GlowShift shall not be responsible for any consequential damages which arise from the use and/or installation of the product.If the product is installed in any manner other than specified, GlowShift reserves the right to deny any warranty claims at the discretion of the technical support department.Coverage under this warranty is only valid within the United States, including its territories, as well as in certain other countries. Purchasers should check our website to determine the warranty coverage in the countries in which they are located.This warranty does not cover any expenses incurred in removing products that are defective or re-installing replacement products in their place.This limited warranty is non-transferrable and will automatically terminate if the original retail consumer purchaser resells the product or transfers the vehicle in which the product is installed.The 60 day limited warranty does NOT cover physical damage, replacement gauge sensors, or consumable items such as fuses and/or batteries.The repair or replacement of any product or part thereof shall not extend the original warranty period. ``` Warranty Claims #### Warranty Claims ``` If you reside in the Contiguous United States, GlowShift will cover the shipping cost associated with returning the defective product back to our location by issuing you a return shipping label. After 30 days, you are responsible for sending defective products back to us. If the product is found to be defective, GlowShift will pay the return shipping cost.If you reside outside of the Contiguous United States, you are responsible for all shipping costs associated with sending the product back for inspection. If the product is found to be defective, GlowShift Gauges will pay the return shipping cost.We are not responsible for any package that is lost in transit while being returned to us. Please insure all packages being returned to minimize your liability if your package is lost or damaged.If a product is returned for testing and is determined to be in perfect working condition by our technical support department, you will then be responsible for ALL shipping costs associated with having the product shipped back to you.Any package being returned to us for ANY reason MUST have an RMA number on it. Packages that are received without RMA numbers will be refused and sent back to you. RMA numbers can be obtained by contacting us directly. RMA numbers are only valid for 15 days from the issue date.Any product returned must include the original packaging, a statement of the alleged defect and an RMA number. ``` Payment #### Payment ``` GlowShift accepts PayPal for all purchases.Simply Click Add to Cart to reserve your item. Continue to fill your cart up with our awesome products. Once you have made all of your selections, proceed to your cart to Confirm and Pay. Your order is not received until payment is submitted.Please notify us immediately if you have any issues or concerns with our checkout process or your order. ``` Shipping #### Shipping ``` All Domestic packages ship Standard with Free Shipping. With Free Standard Shipping, GlowShift will select the carrier at the time of shipping. In Transit times may vary.GlowShift does offer expedited UPS services for an additional free, please reference the Shipping and Payments Tab. Please note, UPS does not include the day of shipping as an in transit day and delivers Monday thru Friday.All Canada Packages are shipped via UPS Standard; All Brokerage Fees & Duty Taxes are to be paid by the buyer. Canadian Orders MUST include a phone number so UPS Customs can contact you.International buyers are also responsible for any & all customs, brokerage and/or taxes to be paid to the courier or their government. GlowShift is not responsible for these charges and we do not have any further information regarding them. Please contact your local customs office with further inquiry regarding this.If a package is returned due to an undeliverable, or an incomplete address, you are responsible for all reshipment costs. If you do not wish to have the package reshipped, a refund will be issued less the cost of all shipping. For International customers, the refund will be less all shipping charges and incurred brokerage fees.If you refuse a package from our company, you are responsible for any and all charges that are incurred for the shipping. Any refunds issued for refused packages will be less any and all shipping charges (original and return shipping charges). International customers are responsible for all shipping charges, as well as all incurred brokerage fees. If you would like to have your order reshipped, you must pay for all shipping charges again along with any return postage costs. ``` Contact Us #### Contact Us ``` Our Customer Support Team is available Monday Thru Friday 9am-5:00pm EST. ``` More Items!

• Brand: GlowShift Gauges
• MPN: GSO-C7-DS4
