TSM 600W DC-DC Converter, 110-180VDC Input, 13.8VDC Output
Price:
$150
Ships From:
Lancaster, Pennsylvania, US
Clicking on links to merchants on this site may result in this site earning a commission.

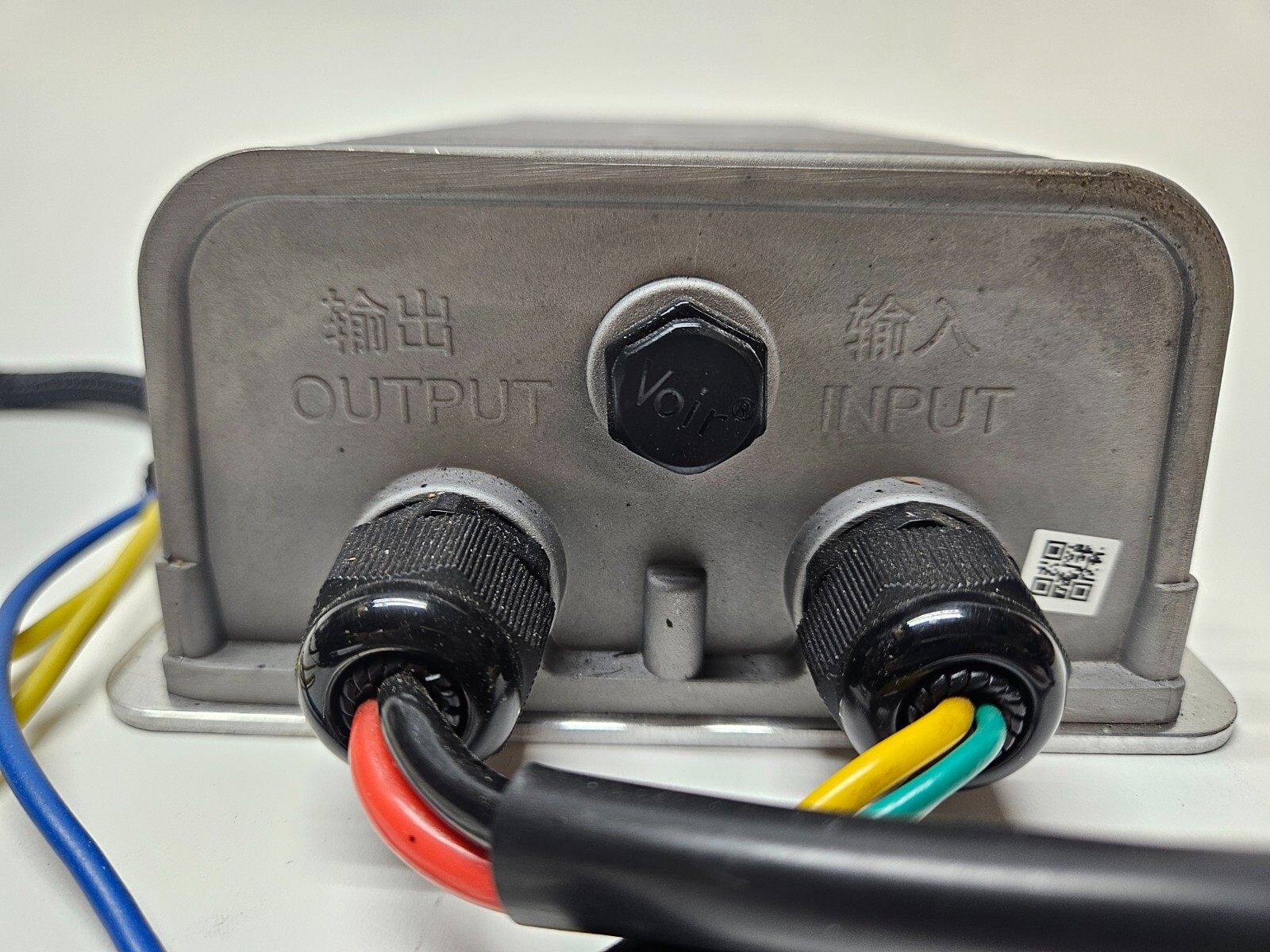

TSM Isolated DC-DC converter has 13.8V output with a max of 50 amps (burst at 12V), Dimensions are 8"x5.5" Footprint, 3 lbs Input Voltage: 110-180V Input: Yellow B+ Grey B- Green B+ (On) Output: Red 12V + Black 12V- Do not connect black to grey. Specs: The ipDCIS series isolated DC-DC converter utilizes advanced high frequency power conversion technology and is designed to transfer high power battery voltage to a lower 12V, to supply vehicle mounted devices such as lights and audio systems. Its features include small size, high efficiency, stabilized output voltage, and completely protected functionality. This DC-DC converter is completely electrical isolated from input to output to ensure safe use; stabilized output voltage can charge 12V batteries; multiple DC-DC converters can be used in parallel directly to increase output current. Maximum Efficiency: ≥88% Environmental Enclosure: IP65 Operating Temperature: -20℃-+60℃ Water & vibration Resistant: Enclosure is sealed by silica glue to protect from water and vibration. Key Switch Control: The converter can be controlled by a key switch control wire instead of an input relay. Over Heat Protection: Automatically reduces output current if the temperature is over 65°C, but it does not shut down to ensure the continuous power for your accessories. Short Circuit Protection: Shuts down and auto-resets with little pulse current. Under Voltage Protection: Shuts down when the voltage of Hi-V battery is too low to avoid over-discharge of the battery. Output Voltage: 13.8V±0.2V @0A, >12V @50A Low Voltage Cutoff _Notes:_ _(1) Be sure you don't have input wires and output wires reversed, otherwise it will cause damage!_ _(2) Don't open the shell of the converter; there is a risk of electric shock!_
- Brand: ThunderStruck Motors
- Type: High/Low Voltage Converter
- Input Voltage: 144 V
- Features: Overheat Protection, Protective Circuit, Undervoltage Protection
- Nominal Battery Voltage: 144 V
- Output Voltage: 12 V
