TH400 Transmission Case OEM HD Reinforced w Bell Cut Off OUT OF STK UNTIL 11/19
Price:
$270
Ships From:
Lovilia, Iowa, US
Clicking on links to merchants on this site may result in this site earning a commission.

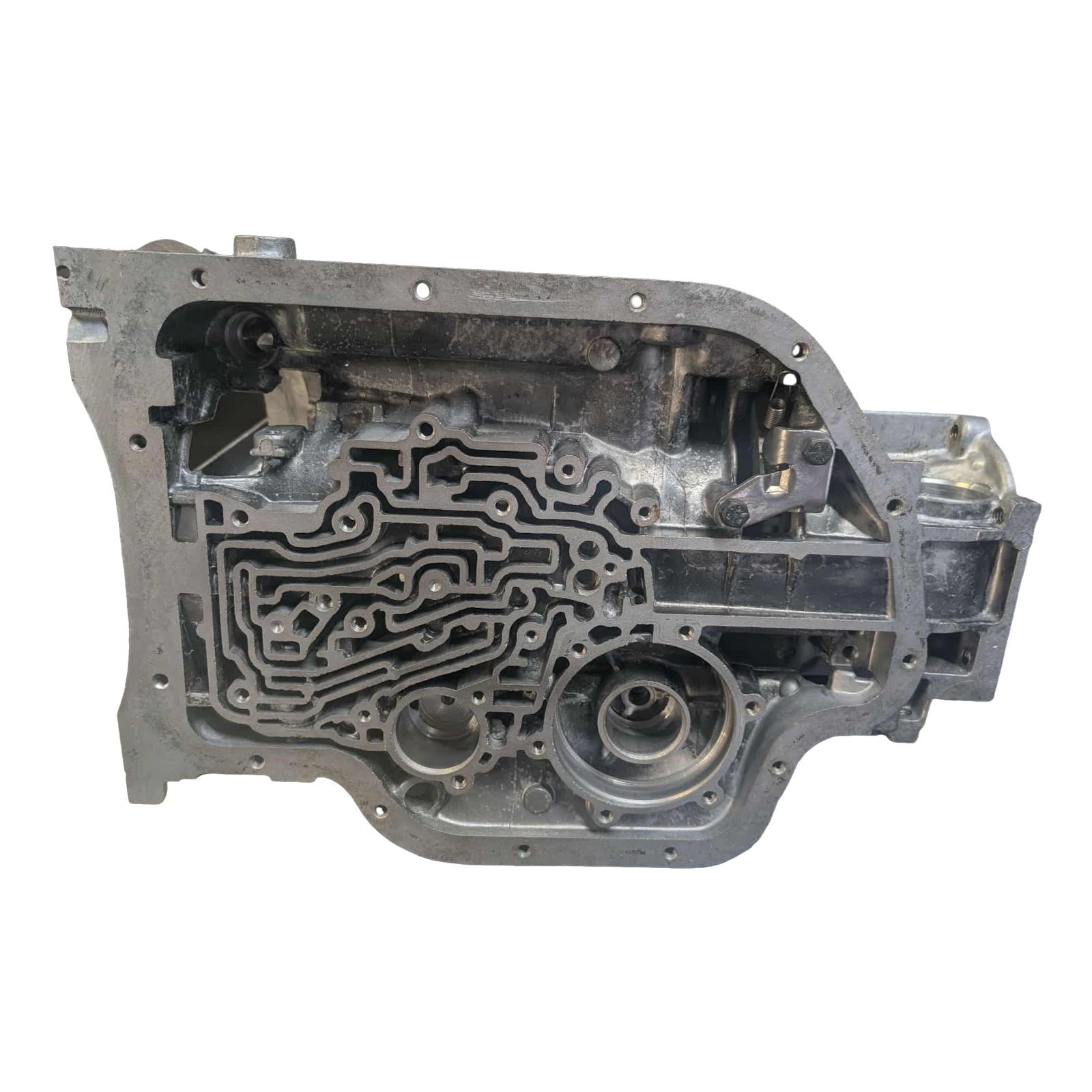

**Heavy Duty TH400 Bare Transmission Case,****8 Bolt Pump Type** **Bellhousing is Cut Off f** **or use with an Aftermarket Bolt-On Bellhousing** When fitted with an aftermarket bellhousing, this case will deliver the most rigid foundation for assembling a high horsepower TH400 using a GM production transmission case. **THIS IS NOT AN SFI CERTIFIED CASE** **WHY THIS CASE IS A BETTER CHOICE OVER A REGULAR 400 CASE** - This case is a factory part with extra reinforced reinforcing in case with a thicker pan rail all the way around and additional reinforcement webbing ribs under the gear train area of the case extending from the rear of the valve body support ( see pictures ). - None of this added reinforcement was ever used on ANY Chevy Turbo 400 HD case. The Chevy HD case is just a regular Turbo 400 case that was only reinforced in the bellhousing area and in the rear where the transfer case bolts on. **CASE PREP** - Case has been cleaned and inspected for wear or damage. - The only linkage included is the parking pawl, bracket & spring as pictured. - We rough cut the bell housing off to keep shipping costs down & to do the 1st cut for you. - Buyer will need to make a final cut for clearance per their bell housing manufacturer's instructions. - The final cut can be done either with a cut off wheel or be machined. - The surface needing to be trimmed is not a mating surface, only for bellhousing to case clearance. - In most cases a finishing cut of only 1-2 inches is all that is needed.
- Fits Transmissions: 400, TH400, Turbo 400, 3L80
- Years: 1967-up
- Items Included: Housing - Bare no internal parts
- Manufacturer Part Number: TH400, HD 400 case
- Material: Aluminum
- Vintage Part: Yes
- Brand: GM
- Type: Housing
- Manufacturer Warranty: 1 Month
- OE/OEM Part Number: Turbo 400 case
- IMPORTANT NOTE: READ THE LISTING DESCRIPTION BEFORE ORDERING
- Country of Origin: United States
- Performance Part: Yes
