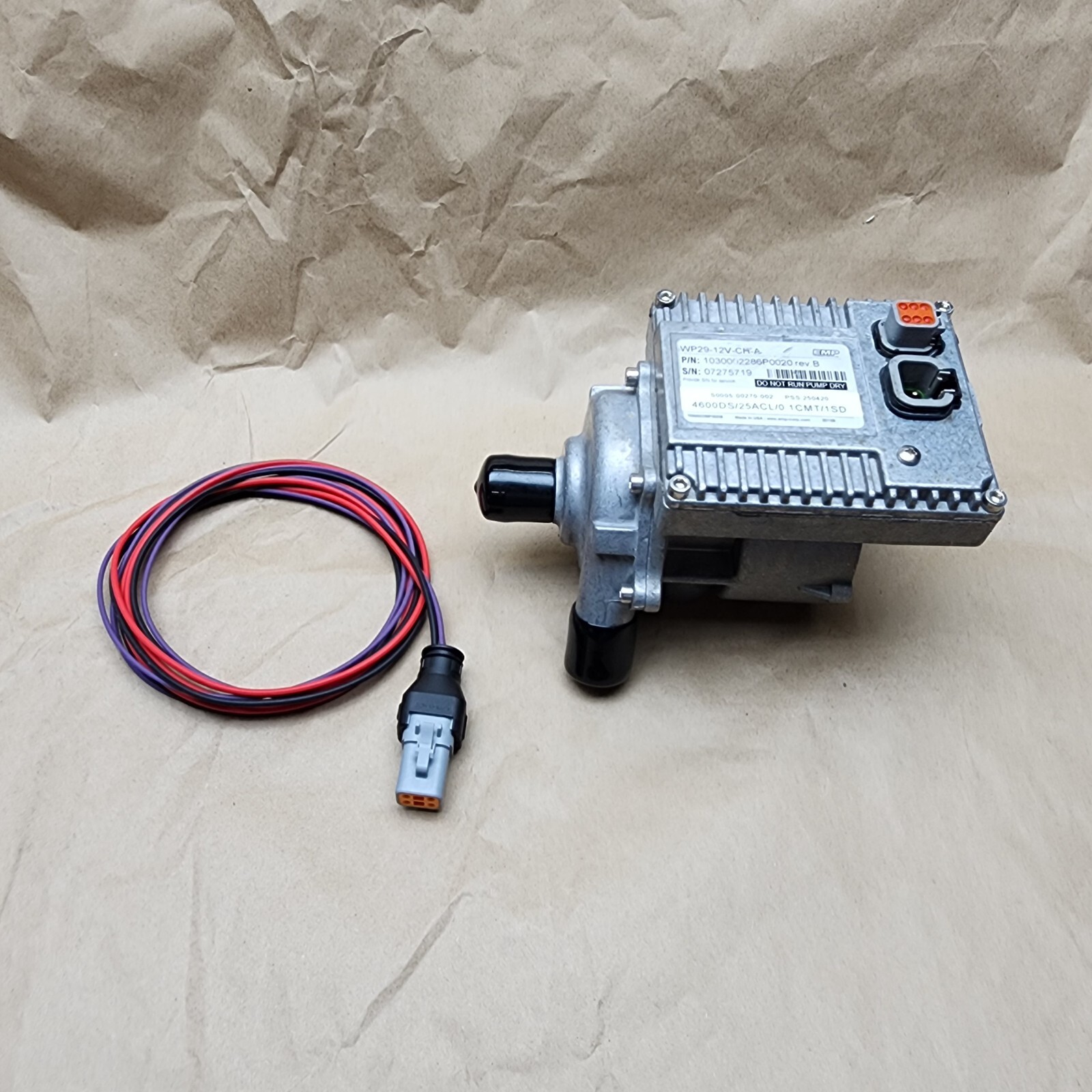

Stewart EMP WP29 WP32 E2512A 12V Electric Water Coolant Fluid Intercooler Pump

# Tested & Reprogrammed Used EMP WP29 High Output 12V Electric Water Pump **Description**: - Used Stewart / EMP WP29 electric water pump that has been inspected, reprogrammed and flow tested - 12V operation - Can  be used as an intercooler pump, engine coolant pump, auxiliary coolant pump and many other uses - One of the highest flowing, high pressure electric water pumps available - This pump is designed to operate at high differential pressures - High flow and high pressure capability - Flows over 29 gallons per minute (gpm) at 7 psi pressure - This pump will flow continue to flow at over 25 psi differential pressure - Flows over 6 gpm at 26 psi (most pumps will have long since stopped flowing at these pressures) - Don't be fooled by flow claims from other pumps that show the open to atmosphere peak flow. Make sure you compare flow at the flow restriction that exists in your cooling system. **Features:** - High current, high efficiency DC brushless electric motor - Long life design (10,000+ hour target lifespan) - 1" inlet and outlet connection fittings - Cast 413 aluminum alloy housing - 9-18 volt DC operating range - Variable speed capability via J1939 (requires CAN input to pump) **Configuration:** - This pump has been programmed for a maximum current limit of 25 amps and a maximum pump speed of 4600 RPM. That is the maximum performance capability of this pump. - The pumps are configured to operate via external CAN control or stand-alone. - In the absence of a CAN signal, the pump will behave as a simple on/off control pump. - The built-in pump controller will wait 0.1 seconds on initial start to check for the CAN signal. When the pump controller does not see the CAN signal for 0.1 seconds it will then go into stand-alone operating mode (simple on/off control mode). - In stand-alone operating mode the pump operates at the default speed of 4600 rpm (maximum rpm) - Need different settings programmed in the pump - contact us so we can see if we can provide what you need **Manufacturer:** - EMP (Stewart Components) **Model****#:** - WP29 (also referred to as E2512A or WP32) **Part #****:** - 1030002286P0020 rev B **Included:** - Pump - 60" power, ground and activation wire pigtail harness - Communications port plug - CAN control harness **NOT** included. Available separately. Pump is programmed to default to maximum pump speed so a CAN connection is not needed for on/off type control. **Condition:** - Used - Pump has been tested to verify flow and pump operation. Pump has been run on our test stand for a minimum of 30 minutes (with fluid - NEVER run intercooler pumps dry) - Pump has been reprogrammed for maximum flow without external CAN inputs required. Label with settings part number and date applied to pump to document current pump status. - Pump has been flow tested to verify flow rate and operation. - Run-time counter has been reset to 0 hours - **Note - we have multiple pumps. The images** **shown are for reference example and will not be of the actual pump you will** **receive. Pumps are inspected for damage but they are used pumps and will** **have some signs of wear/use.** **Warranty:** - 90 days or 500 operating hours (run-time stored in pump) - Repair or replace at PSS discretion - Warranty void if maximum operating temperature or voltage is exceeded. We will also accept returns of most new products ordered (except as noted below) as long as they have not been installed or disassembled and are returned in the original, sealed packaging in new and saleable condition. Labels, tape or other markings on the packaging will cause products to no longer be considered in saleable condition. Requests for return of new parts must be submitted within 30 days (unless specified otherwise in the listing) of the purchase date. We can not accept any returns on any part that has been installed or modified.

• Features: 100% Leak Tested, Durability Tested, No Drilling or Modifications Needed for Installation, Variable Speed, Flow tested
• Manufacturer Warranty: 3 Months
• Vintage Part: No
• OE/OEM Part Number: 1030002286, 1030002286 P0020, 1030002286P0020, 1030002286P0020B
• Item Length: 8 in
• Country/Region of Manufacture: United States
• Drive Type: Electric
• Housing Material: Aluminum
• Manufacturer Part Number: WP29, WP32, E2512A, 1030002286P0020
• Brand: EMP
• Mounting Style: Bolt-On
• Type: Electric water pump
• Items Included: Pigtail power and activation harness, Communications port sealing plug
