Sevcon Gen4 Size2 72-80V 180A 634A81203 Motor Controller
Price:
$200
Ships From:
San Francisco, California, US
Clicking on links to merchants on this site may result in this site earning a commission.

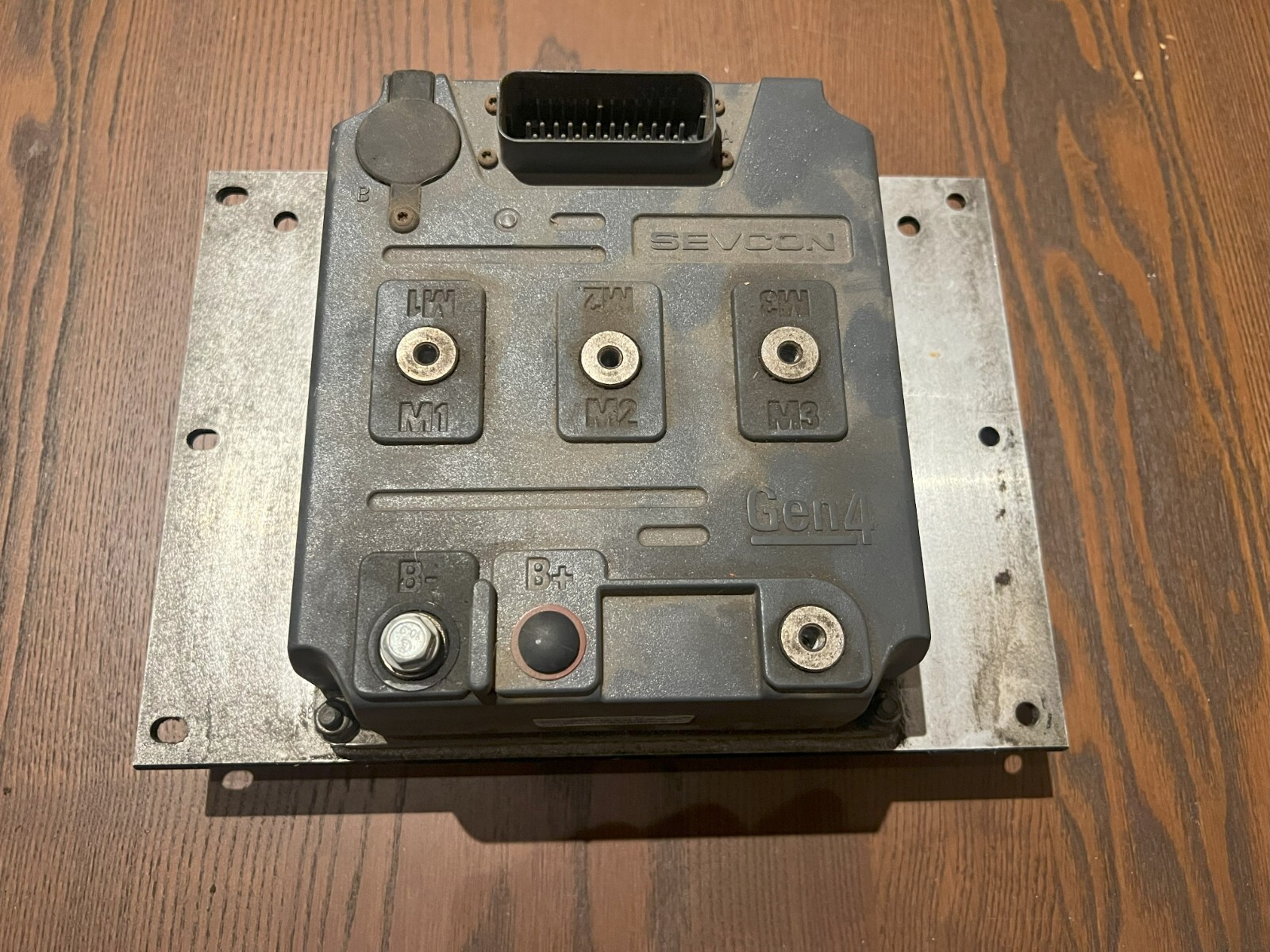

Sevcon Gen4 Size2 72-80V 180A Motor Controller 634A81203 Serial number: 1302100621 Comes with cooling plate and fins pictured. Item was pulled from an old project and is working. Sensors and motor feedback: \- Absolute UVW encoder input \- Absolute Sin/Cos encoder input \- Incremental AB encoder input Features: \- Advance flux vector control \- Autocheck system diagnostic \- Integrated logic circuit \- Hardware & software failsafe watchdog operation \- Supports both PMAC motor and AC induction motor control \- Integrated fuse holder \- IP66 protection Inputs: \- 8 digital inputs \- 2 analogue inputs (can be configured as digital) \- 3 contactor/solenoid outputs \- 1 encoder supply output - programmable 5V or 10V Additional Specs: \- Nominal Voltage: 72 - 80 VDC \- Operating Voltage: 39.1-116 VDC \- Current (120s): 180A \- Boost (10s): 215A
- Brand: Sevcon
- Maximum Amperage: 180 A
- OE/OEM Part Number: 634A81203
- Manufacturer Part Number: 634A81203
