Reverse 90 Degree Under Dash Brake Clutch Pedal Bracket 7" Booster Master RETURN
Price:
$225
Ships From:
Hudson, Iowa, US
Clicking on links to merchants on this site may result in this site earning a commission.

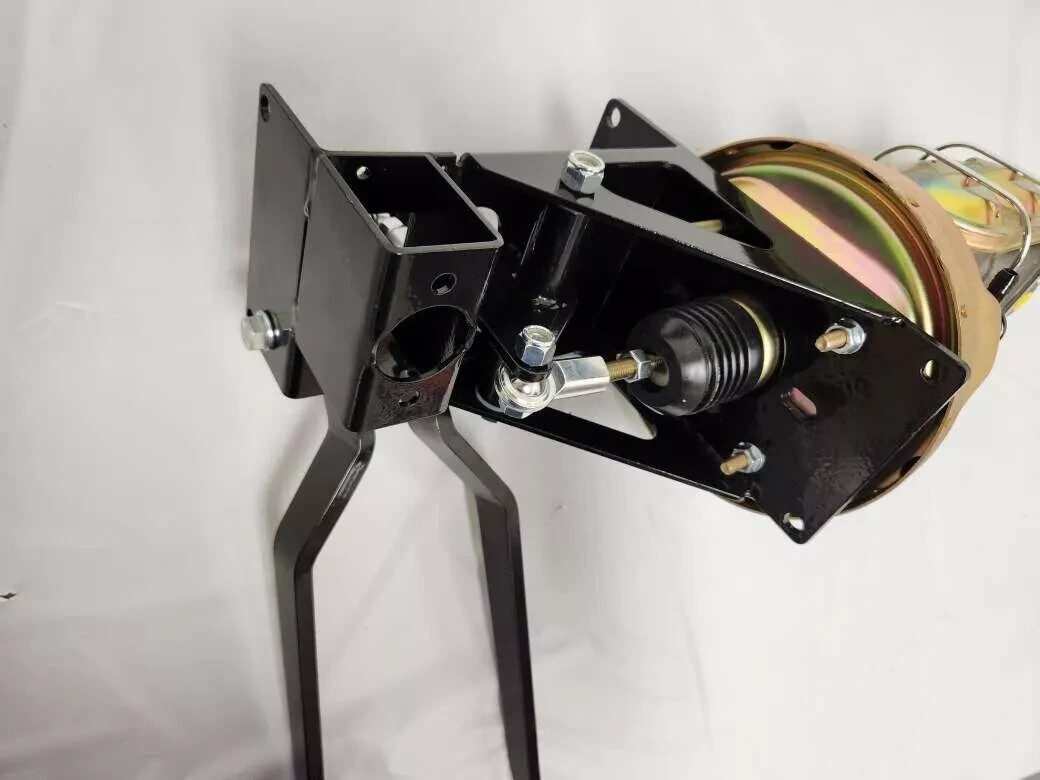

This is a CUSTOMER RETURNED Reverse 90 Degree Brake and Clutch kit with 7" Single Booster and Bail Top Master Cylinder. **\*\*\*CUSTOMER NEEDED A DIFFERENT SETUP INSTEAD AND RETURNED. PACKAGING HAS BEEN OPENED AND THERE ARE A FEW MINOR SCUFFS IN FINISH ON BRACKET FROM BEING MOCKED UP, BUT INSTALL WAS NOT COMPLETED AND PARTS ARE OTHERWISE STILL LIKE NEW...SAVE $$$** This Bracket mounts the booster and master cylinder 90 degrees to the side so they don't stick out into the engine compartment. A lot of custom builds have no space left in the engine compartment, so a booster sticking out is not an option. But if you've got space under the dash, then this is the perfect fix! This also includes a 7" ZINC brake booster and Bail Top Master Cylinder. This 7" booster is ideal for most small to mid size street rods and customs.The booster mounts with a 4-bolt pattern. Additionally this includes aZinc Bail top master cylinder. This master cylinder is the Bail Top Style & has a 1" Bore. Mounting holes measure 3 3/8" center to center. This works great for most drum/drum, disc/disc or disc/drum applications. This is a four port master cylinder, so you can use the ports on whichever side you need and block the others. It includes plugs for the ports you do not use. This is a great upgrade over a standard GM style master. Please Note: No Instructions Included.
- Brand: Gearhead
- Interchange Part Number: 5100 5101 5102 5103 5104 5105 5106 5107 5108 5109, 5120 5121 5122 5123 5124 5125 5126 5127 5128 5129
- Manufacturer Part Number: D20026
- Country of Origin: United States
