REBUILT S10 T5 Transmission w/ Muncie Saginaw Conversion & Mechanical Speedo NWC
Price:
$2995
Ships From:
Canyon Country, California, US
Clicking on links to merchants on this site may result in this site earning a commission.

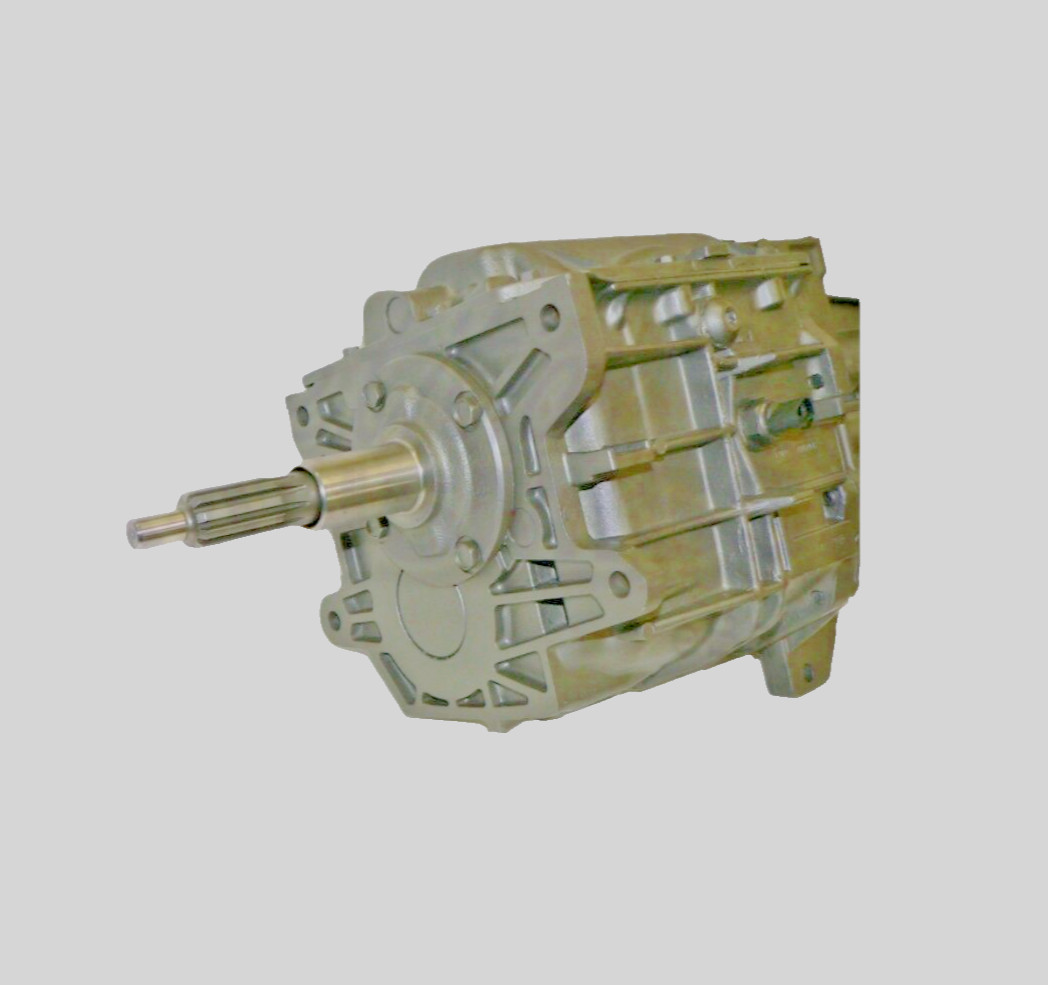

\\*\\*\\* REBUILT \*\*\* Non-World Class Chevy S10 T5 5 Speed Trans Converted to a 10 Spline 1 1/8" Input To Replace a Muncie or Saginaw 3 & 4 Speed Mechanical Speedo THESE ARE NOT FOR PERFORMANCE USE OR RACING. Street rods & cruisers only. ### GEAR RATIOS: 3.78 - 2.18 - 1.42 - 1.00 - 0.72 Description ... This is an S10 type T5 with a mechanical speedo that has been rebuilt and converted to the 10 spline 1 1/8" input shaft & bearing retainer to be a direct bolt up replacement for a Muncie & Saginaw 3 & 4 speed transmission. Overall length & crossmember mounting will vary but still uses the 27 spline slip yoke.
- OE Spec or Performance/Custom: OE Spec
- Speedometer Type: Mechanical
- Housing Material: Aluminum
- Fitment Type: Performance/Custom
- Items Included: Rebuilt Transmission
- Manufacturer Part Number: S10 T5 Muncie Input, T5 with 10 spline 1.125 GM input
- Gear Count: 5
- Shift Linkage Type: Internal Shift Rail
- Bearing Retainer OD: 4-5/8"
- Clutch Spline Count: 10 spline with 1-1/8" shaft OD
- Brand: GM
- Type: Manual Transmission
- Manufacturer Warranty: 1 Year
- OE/OEM Part Number: S10 T5 Muncie Input
- NOTE: Will fit any GM manual trans with 10 spline 1.125" input 4.5/8"
- Tag ID: 1352-145
