MSD 6AL-2 Programmable Ignition Box- 6530 - MSD Re-Certified
Price:
$375
Ships From:
Lumberton, Texas, US
Clicking on links to merchants on this site may result in this site earning a commission.

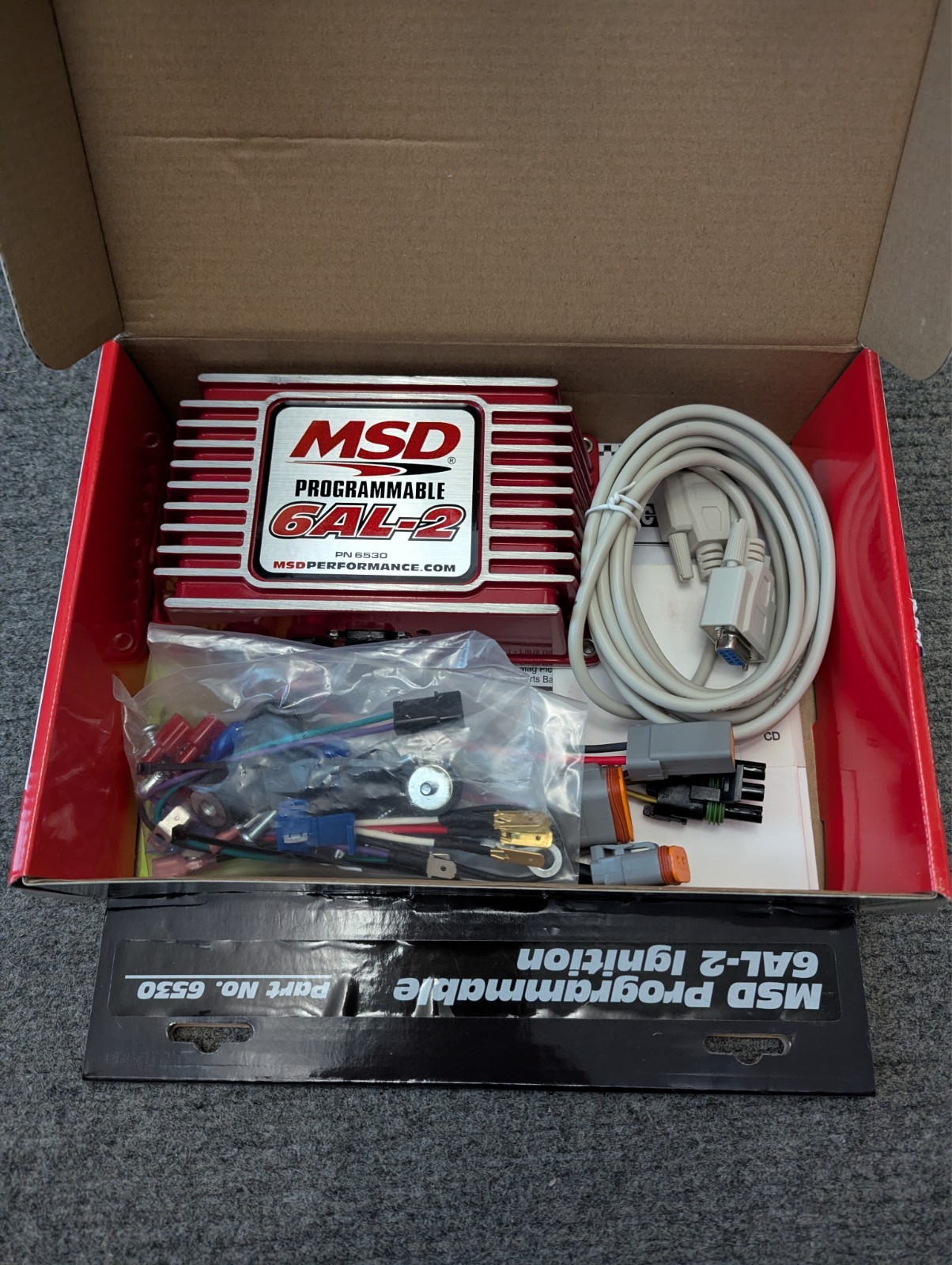

This is an MSD 6AL-2 Programmable ignition box that was recently removed due to a complete ignition upgrade. This box was sent to MSD to make sure there are no issues with it. Just received it back. Comes with everything I have for it in the box. It may as well be new. Overview The Programmable 6AL-2 lets you lock out the distributor and program a timing curve via a PC. You'll also be able to set a 2-Step Rev Limiter, a retard for use with nitrous and even a boost timing curve for forced induction engines!The Programmable 6AL-2 shares the same advanced features of the new 6AL-2 with 535 primary volts and spark energy reaching 135 mJ! Vibration mounts, wiring and a PC cable are supplied. Must use MSD Pro-Data+ Software to program. ### Features: - 12-18 Volts, Negative Ground - .7 Amp per 1,000 RPM - PC Programmable with easy-to-use Windows based Pro-Data +Software - Programmable 3-Step Rev Limiter (100 RPM increments) - EO # D-115-21 - Capacitive Discharge technology for fast rise time and maximum spark energy - Advanced features allow for use in street and racing applications - Step retard for nitrous applications plus a boost timing map - Plot a boost timing map with 0.1° per psi accuracy - 12,500 RPM with 14.4 Volts Specs BrandMSDC.A.R.B EO #D-115-21CategoryIgnitionColorRedCurrent Draw1000 RPMEmission Code1Maximum RPM12,500 RPMPart TypeEngine Ignition RPM GovernorPrimary Voltage535Product TypeDigital Programmable 6AL-2Secondary Voltage45,000Spark Energy (mJ per spark)135Sub CategorySecondary IgnitionVoltage Required12-18WarrantyManufacturer's Limited 1 Year WarrantyWeight and Size3 lbs., 7L x 4W x 2HUPC085132065301Part Number6530
- Rev Limiter Quantity: 3-Step
- Rev Limiter Adjustment Method: PC
- Rev Limiter: Yes
- Launch Control: Yes
- Programmable: Yes
- Style: Capacitive Discharge
- Height: 2 in
- Width: 4 in
- Finish: Powder Coat
- Digital / Analog: Digital
- MultiSpark: Yes
- Timing Control: Yes
- Color: Red
- Manufacturer Part Number: 6530
- Quantity: Kit
- Material: Aluminum
- Secondary Voltage: 45000 Volts
- RPM Maximum: 12500
- Weight: 3 lbs
- Spark Duration Degrees: 20 Degrees
- Brand: MSD IGNITION
- Type: Ignition Kit
- Length: 7 in
- Timing Control Quantity: 1-Stage
- Primary Voltage: 535 Volts
- Voltage Requirement Minimum: 12 Volts
- Voltage Requirement Maximum: 18 Volts
- Spark Energy: 135 mj per Spark
- Product Line: 6AL-2
- Current Draw / 1000 RPM: 0.7 amp
- UPC: 085132065301
