Model A Ford Zenith Carburetor Original Brass Levers 1928 Early Test Run (Z)

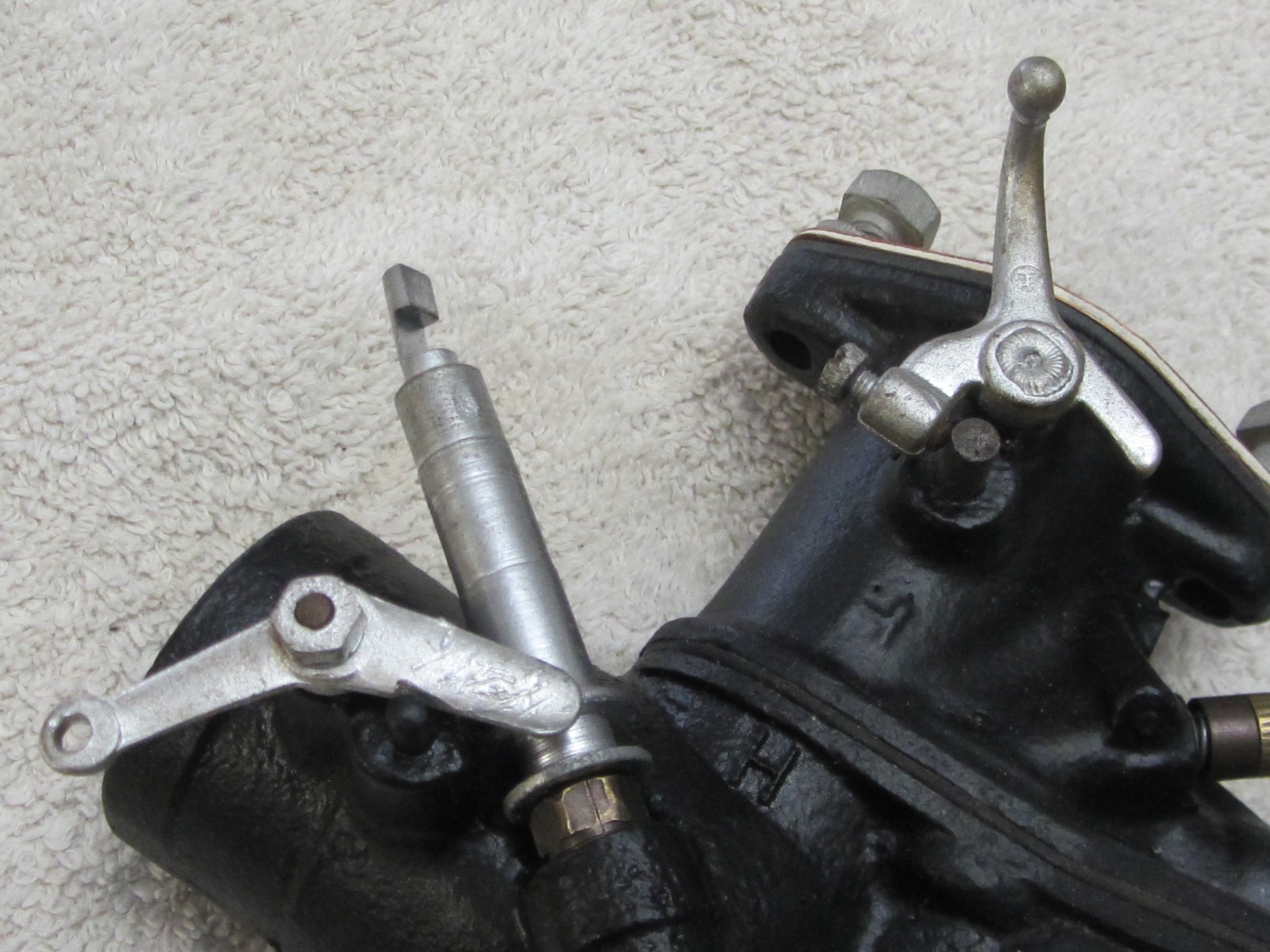

Selling an original Zenith carburetor made for Model A Ford cars and trucks over 90 years ago. This is a Holley produced carburetor with a raised "H" on top. The bowl also has a raised "H" with no number and an early roll feature on bottom, indicating a mid to late 1928 production, but will run fine on all 4 years of production. It was bead blasted, passages cleaned and painted judging correct flat black gas proof paint. I then cleaned, threads and jets checked, parts replaced as needed, and float checked for leaks and set properly. I have installed new gaskets and screen on original brass nut. I have also used a New, original style teflon seat float valve. I have used as many original parts as possible to keep cost down and maintain some sort of originality. It has a correct brass throttle and choke levers, large head idle adjust needle. It has an original pinned GAV driver, idle jet and brass fuel filter. After rebuild it was test run on my 1928 Tudor, nice acceleration and idle. This is a fairly rare carburetor and runs very well. Please look at photos closely and feel free to ask questions, only ship to USA address. Credit given for good cores. Note that use of an air filter likely will cause engine to run rich, Ford did not put these on from the factory.

• Country of Origin: United States
• Brand: Ford
• Choke Type: manual
• Type: zenith
• Interchange Part Number: A9510
• Manufacturer Warranty: 1 Month
• Manufacturer Part Number: 9510-B
• Features: Up Draft
• Surface Finish: japan black
• Material: Brass
• Barrel Count: one
