LMTV Suspension Compression Kit Dual Locking Hydraulic Pistons
Price:
$275
Ships From:
Belford, New Jersey, US
Clicking on links to merchants on this site may result in this site earning a commission.

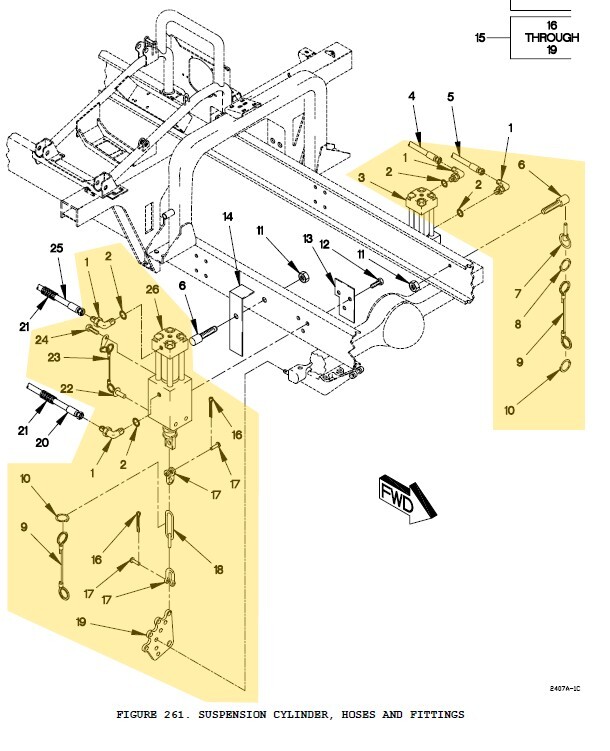

LMTV Suspension Compression Kit. Nearly everything in figure 261 of TM-9-2320-365-24P except for the hoses and passenger side part #6 since it's nearly impossible to access. All pars in full working order and no leaks observed. Locking pins slide in smoothly as well. Figure #Part #NameQty included1MS51527A4ZTube elbow, SAE ORB to JIC #4 w/ o-ring42MS28778-4O-ring4 (part of #1)3 & 2612420793Cylinder assembly2612417929Screw w/ cross-hole1712417930Quick Release Pin2819-4CDRetaining Ring2950996-8WLanyard21019-9CDRetaining Ring21112414308-021M12 Nut112B18231B16030NM16 Cap Screw, 30mm61312421158Spacer Plate21512421180Chain Assy216MS24665-385Cotter Pin2171018892Shackle41812421195Welded Chain21912421196Mounting Plate222MS17984C735Quick Release Pin42312420196-004Lanyard42412414419-089M8 Screw2
- Brand: Unbranded
- Type: Compression Cylinders
- Load Capacity: 10000 lb
- Features: No Drilling Required
- Placement on Vehicle: Front
