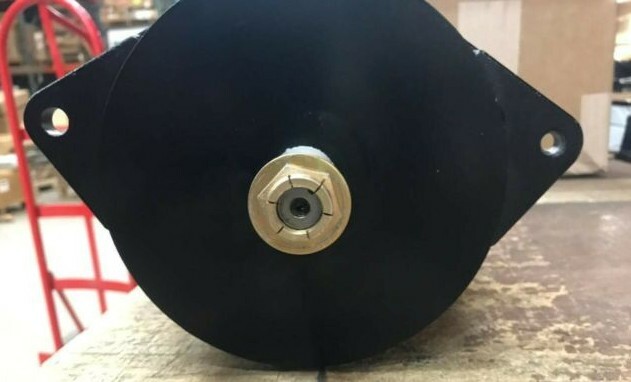

HMMWV M35A2 60 AMP 24v ALTERNATOR HUMVEE M998 USA 5717244 M998
Price:
$850
Ships From:
Augusta, Georgia, US
Clicking on links to merchants on this site may result in this site earning a commission.
_**HMMWV M35A2 60 AMP 24v ALTERNATOR HUMVEE M998 USA 5717244 M998**_ _Please note that this alternator is rated for 24v despite the sticker reading "28v."_ **HMMWV 24 V Generator/Alternator 60 Amp** **M35A2 2.5 Ton/ Military Trucks** **$100.00 refunded back, for your core!**(buyer must cover core shipping cost) **Core charge is included in price** THREAD DIRECTION RIGHT-HAND THREAD LENGTH 0.750 INCHES NOMINAL SECOND STEP DIAMETER 0.6684 INCHES MINIMUM AND 0.699 INCHES MAXIMUM KEYWAY WIDTH 0.125 INCHES NOMINAL UNTHREADED PORTION LENGTH 1.310 INCHES NOMINAL MOUNTING HOLE THREAD DIRECTION RIGHT-HAND MOUNTING STYLE BRACKET MTD W/THREE MTG HOLES, TOP HOLE THREADED ENVIRONMENTAL PROTECTION CORROSION RESISTANT AND FUNGUS RESISTANT KEYWAY LENGTH 0.625 INCHES NOMINAL SUBMERSIBILITY SUBMERSIBLE SHAFT ROTATION DIRECTION CLOCKWISE OR COUNTERCLOCKWISE DISTANCE FROM END TO KEYWAY CENTER 1.405 INCHES NOMINAL THREAD DIAMETER 0.625 INCHES NOMINAL GROUND POLARITY TYPE NEGATIVE ARMATURE MINIMUM SPEED IN RPM AT FULL CURRENT OUTPUT 2000 MAXIMUM OUTPUT CURRENT RATING IN AMPS 60.0 RECTIFIER LOCATION INTEGRAL GROUNDING METHOD INTERNAL SHAFT DRIVE END STYLE STRAIGHT SHAFT END, THREADED, W/KEYWAY DISTANCE BETWEEN SHAFT CENTER AND BOTTOM MOUNTING HOLE CENTER 4.182 INCHES MINIMUM AND 4.192 INCHES MAXIMUM DISTANCE BETWEEN SHAFT CENTER AND TOP MOUNTING HOLE CENTER 4.182 INCHES MINIMUM AND 4.192 INCHES MAXIMUM ANGULAR DEVIATION OF FIRST HOLE FROM TOP CENTER IN DEG 159.0 ANGULAR DEVIATION OF SECOND HOLE FROM FIRST HOLE IN DEG 201.0 DISTANCE BETWEEN INSIDE SURFACES OF HINGE BRACKET 7.243 INCHES MINIMUM AND 7.256 INCHES MAXIMUM DISTANCE BETWEEN OUTSIDE SURFACES OF HINGE BRACKET 8.123 INCHES MINIMUM AND 8.136 INCHES MAXIMUM BOTTOM MOUNTING HOLE DIAMETER 0.448 INCHES MINIMUM AND 0.458 INCHES MAXIMUM MAXIMUM RATED ARMATURE SPEED IN RPM 8000 THREAD SERIES UNF THREAD CLASS 2A MOUNTING HOLE THREAD SERIES DESIGNATOR UNC MOUNTING HOLE THREAD DIAMETER 0.375 INCHES NOMINAL MOUNTING HOLE THREAD QUANTITY PER INCH 16 MOUNTING HOLE THREAD CLASS 2B THREAD QUANTITY PER INCH 18 VOLTAGE IN VOLTS 24.0 **_Questions:_** We would love to answer every question, but we do run into very specific questions that should be directed to your mechanic. **We sell** parts and you (or a mechanic) will install them. Please verify with the person installing it if it will fit or do what you need it to do, before purchasing. **_Shipping:_** Our goal is to provide customers with swift delivery. Typically, items will be shipped in a small package and will ship within one business day - after payment has been received. Freight items will have a longer lead time and our freight dept. will call you when your order is ready to go. **_Return Policy:_** All returns must be made within 14 days of purchase. A Return Merchandise Authorization number is required for all returns. **Please email** us through the PayPal system to obtain an RMA number. The buyer is responsible for all return shipping costs and a 20% re-stocking fee, unless the item was shipped in error by seller or is defective. **_Feedback:_** We value our feedback rating tremendously - besides the fact that it allows us to judge how satisfied our customers are, it affects our seller status, which allows us to keep our prices as low as possible. We leave feedback _after_ we receive it, because we don't consider the transaction complete until our buyers have received their order and are satisfied. If you feel the need to leave anything other than positive feedback, please contact us first. We will try to resolve any issues, but we can't rectify a problem if we are not aware of it. **Thanks** **for looking and purchasing with confidence – having been in business since** **1951, we are happy to provide all of your military parts.**
- Brand: Prestolite
- Other Part Number: 011687899.2920
- Interchange Part Number: 71232
- Manufacturer Part Number: 5741149
- Country of Origin: United States
