HKS Hi-Power SPEC-L2 Exhaust System For 22-25 Subaru BRZ/Toyota GR86 32016-AF101

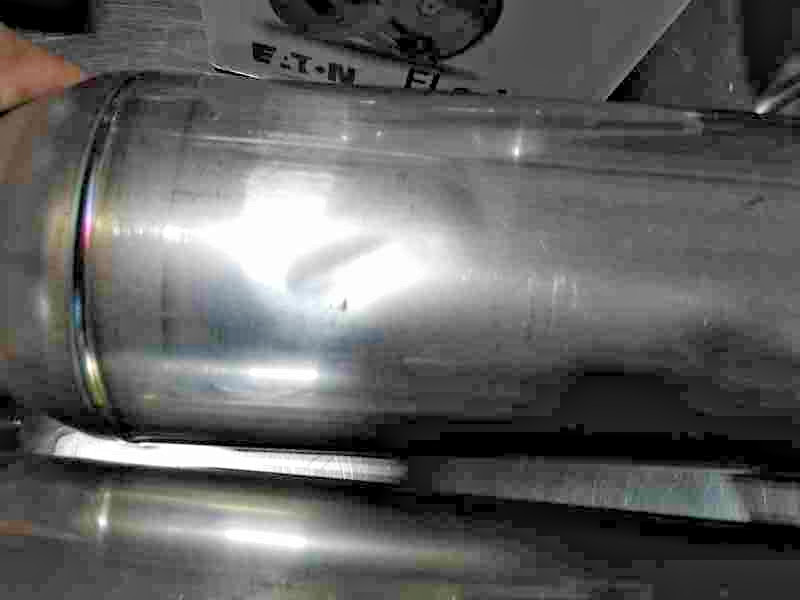

**HKS 2022+ Subaru BRZ Hi-Power Muffler SPEC-L2 ZD8 FA24** **Part Number: 32016-AF101** **Item condition:** Open box item. Piping has dents from shipping. Sold as-is. Thanks! **Sporty sound and significant weight reduction enhances the BRZ's driving performance.** - By using ultra-thin stainless steel material for pipes and silencers, the weight has been achieved to a level competitive with titanium exhausts. - The sound characteristics of the exhaust system are emphasized by the bass sound, while the annoying exhaust drone is eliminated by the silent chamber. "It has a unique shape with equal length on each sides for producing a clear exhaust sound. This is a product that allows you to fully enjoy the pleasant HKS sound. - The pipe diameter was selected to match the high output 2.4L engine for superior exhaust performance. By reducing weight and exhaust pressure, we have achieved a significant improvement in driving performance. - Customization with optional tail tip covers is available in 3 types; titanium, carbon, and blue stainless steel. - 32016-AF101 is designed to meet Japanese regulations and is quieter than 32016-BT004. ##### Remarks • Tail: L&R • Compatible with Applied Model A-D. • CUP designated parts certified in 2025 season • T.R.A approval number: T.R.A.230322-154 ##### About HKS muffler \*1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. \*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exhaust noise level at idle. Cert. No.JQR40214118VehicleBRZModelZD8EngineFA24Model Year21/08 - Shape of mufflerHP (Hi-Power SPEC-L II)Main materialS304Diameter of tip94 L&RDiameter of center pipe65 - 50.8 x 2 (\*1)Close noise levelStock82/82HKS88/88About road clearance(\*2)Clearance120mmPortion of the kitMid pipeRemarksProduct Weight11.4kg

• Country of Origin: Japan
• Shape: Round Angle
• Items Included: Piping
• Item Length: 50.6
• Placement on Vehicle: Lower, Rear
• Labels & Certifications: CARB
• Inlet Diameter: 65mm
• Features: CUP designated parts certified in 2025 season, S304 Stainless Steel Construction, Reduced Weight, Similar to Titanium Systems
• Finish: Polished
• Performance Part: Yes
• Mounting Style: Bolt-On
• Item Diameter (Exterior): 94mm
• Color: Silver
• T.R.A approval number: T.R.A.230322-154
• Outlet Diameter: 94mm
• Item Diameter (Interior): 65mm
• Manufacturer Part Number: 32016-AF101
• Material: Stainless Steel
• Vintage Part: No
• California Prop 65 Warning: WARNING: This product can expose you to chemicals, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Brand: HKS
• Muffler Quantity: 1
• Type: Cat Back Exhaust Kit
• Interchange Part Number: hks32016-AF101V, 32016-AF101, hks32016-AF101, 2022+ Subaru BRZ exhaust, 2022+ Toyota 86 exhaust
• C.A.R.B. EO #: CARB Legal, JQR40214118
• OE/OEM Part Number: SU003-11046, SU003-09543, PTR03-18220, 44300CC050, 44620AE940
• Universal Fitment: No
• UPC: 4957266940716
