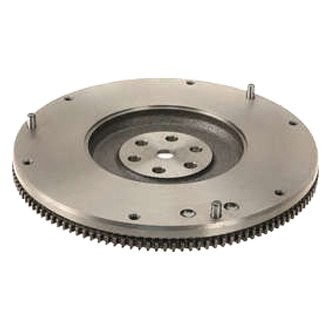

For Hyundai Veloster 2013-2017 LuK LFW453 Single Mass Flywheel
Price:
$118.66
Ships From:
Rockville Centre, New York, US
Clicking on links to merchants on this site may result in this site earning a commission.
LuK conventional flywheels are dynamically balanced to reduce vibration and improve clutch performance. All new – never remanufactured – every flywheel component is engineered and built to original-equipment specifications, including the ring gear and dowel pins. Single Mass Flywheel (LFW453) by LuK®. LuK conventional flywheels are dynamically balanced to reduce vibration and improve clutch performance. All new – never remanufactured – every flywheel component is engineered and built to original-equipment specifications, including the ring gear and dowel pins. **Specifications:** - Dowel hole diameter: .315 inch - Dowel hole diameter: 8 mm - Overall Casting O.D.: 10.565 inch - Overall Casting O.D.: 268.35 mm - Flywheel Thickness \[mm\]: 1.106 inch - Flywheel Thickness \[mm\]: 28.1 mm - Flywheel friction surface outer diameter: 9.252 inch - Flywheel friction surface outer diameter: 235 mm - Ring Gear Chamfer Position 6:00 O´clock: Left - Ring Gear Thickness: .327 inch - Ring Gear Thickness: 8.31 mm - Bolt hole PCD clutch pres.plte: 9.724 inch - Bolt hole PCD clutch pres.plte: 247 mm - Dowel Hole Pattern: 5 - Flywheel matches Clutch: Flywheel matches Clutch - Ring Gear Mounting O.D.: 9.676 inch - Ring Gear Mounting O.D.: 245.76 mm - Centering diameter / dowel hole: 9.724 inch - Centering diameter / dowel hole: 247 mm - Crank To Friction Surface: .893 inch - Crank To Friction Surface: 22.67 mm - Bolt Hole Pattern: 2 - Bolt hole PCD crankshaft: 2.282 inch - Bolt hole PCD crankshaft: 57.97 mm - Flywheel Friction Surface Inner diameter: 5.669 inch - Flywheel Friction Surface Inner diameter: 144 mm - Ring Gear Chamfer Side: Engine - Ring Gear Major Dia.: 10.669 inch - Ring Gear Major Dia.: 271 mm - Flange Thickness: .392 inch - Flange Thickness: 9.96 mm - Number of teeth, starter ring gear: 127 - I.D. for Pilot: 1.297 inch - I.D. for Pilot: 32.95 mm - Ring Gear Chamfer matches OE: Ring Gear Chamfer matches OE - Crank Hole Dia.: .415 inch - Crank Hole Dia.: 10.55 mm **Features:** - Engineered and manufactured to OE specifications - All new components - including ring gear and dowel pins - Perfectly balanced - Precision-machined from premium grade cast iron - Superior quality friction surface - Excellent heat-absorbing capacity - Order from the comfort of your home or office The flywheel is an integral part of a clutch replacement. In today’s tightly packaged clutch systems, flywheels can easily be machined beyond their usable life – a critical flaw that would not be evident until after the clutch is installed. Improper machining can also cause interference, no release and slipping problems. Pairing your LuK RepSet with a new LuK flywheel is a smart, cost-effective alternative to resurfacing. **Replaces Original (OE) Part #:** 232002B020 Product Video About Us
