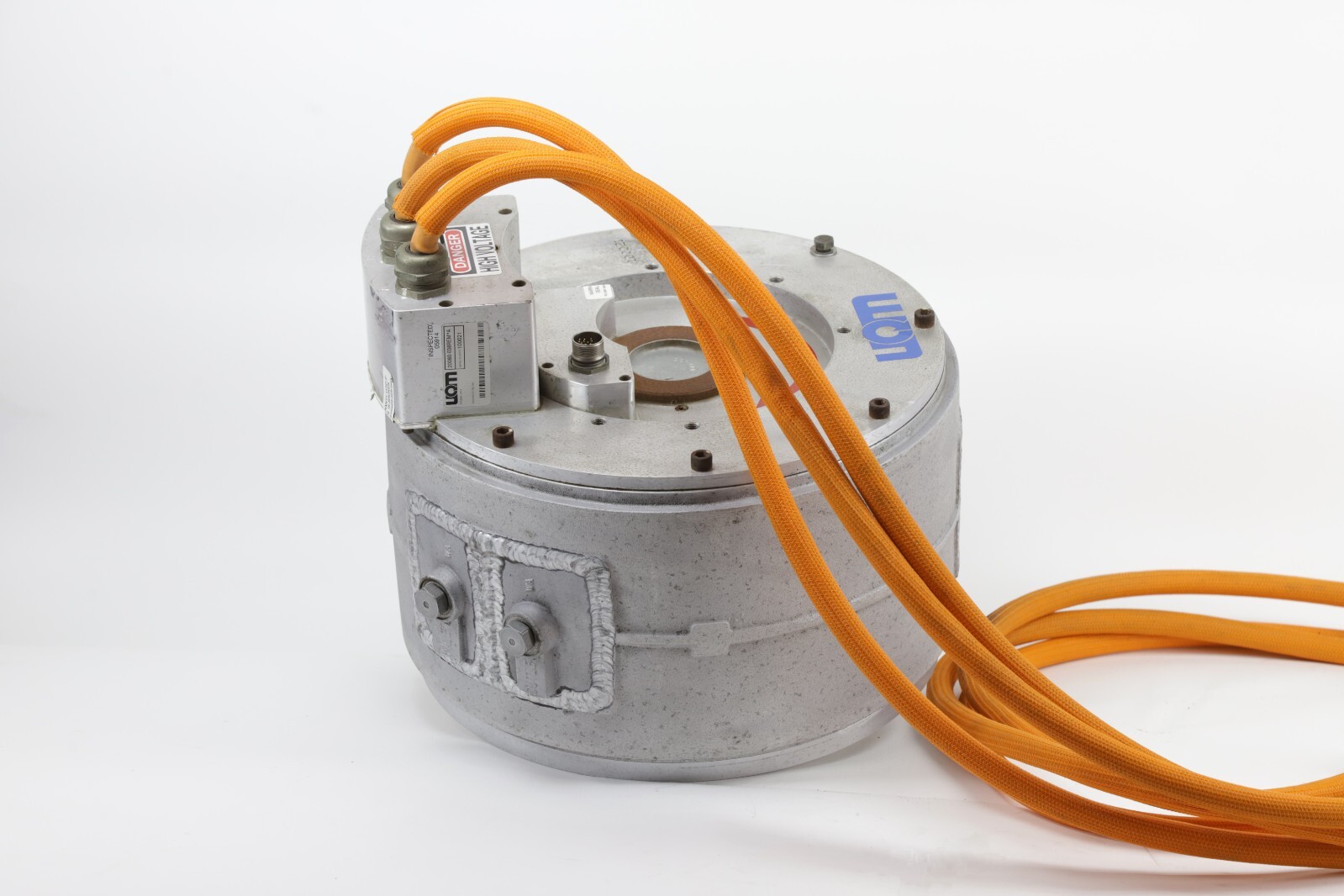

Danfoss UQM Electric Motor PP HD 220 (SPM286-149-2) + UQM Motor Controller Set
Price:
$18950
Ships From:
Sacramento, California, US
Clicking on links to merchants on this site may result in this site earning a commission.
**Danfoss UQM Electric Motor + UQM Motor Controller Set** **Motor Part No: 20080-038REM\*A** **SPM286-149-2** Serial No: 100021 **System Specifications** Operating speed: 0-6000 rpm Maximum / continuous power: 220 kW / 150 kW Maximum / continuous torque: 700 Nm / 440 Nm Peak efficiency: 94% Operating voltage: 250-440 VDC Communication: CAN bus **Specifications** Peak power: 295 hp 220 kW Continuous power: 201 hp 150 kW Peak torque: 516 lbf ft 700 Nm Continuous torque: 325 lbf ft 440 Nm Maximum efficiency: 94% Continuous Power density: .87 hp/lb 1.5 kW/kg **_ASSEMBLED IN USA_** \-\-\------------------------------------------------ **Motor Controller Part No: 1000T-012** Serial No: 1000T-012\*B2\*DV1167 **Operating Voltage** Operating voltage input range: 250-440 VDC Minimum voltage: 250 VDC Nominal input voltage: 360 VDC Maximum voltage: 440 VDC DC current limitation, motoring: 500 A **Digital Signal Processor** Nominal input voltage: 12 VDC or 24 VDC Input supply voltage range: 9 to 35 VDC Input supply current range: 1 to 5 A **Liquid Cooling System** Minimum coolant flow: 10 l/min 50/50 water/glycol Maximum inlet temperature: 140° F 60° C **Inverter Type** Control type: PWM & phase advance Power device: IGBT Switching frequency: 3 to 12 kHz Standby power: 14 W **_ASSEMBLED IN USA_** **_\*Please ask any questions you may have before purchasing this item._** **_Thank you._**
- Country of Origin: United States
- Brand: UQM
- Muniparts Item Number: 1547781431
- Type: Drivetrain Motor
- Peak Power: 220kW
- Maximum RPM: 6000
- OE/OEM Part Number: 20080-038REM*A, 20080-038
- Peak Torque: 700 Nm
- Manufacturer Part Number: SPM286-149-2, 1000T-012, 20080-038REM*A
