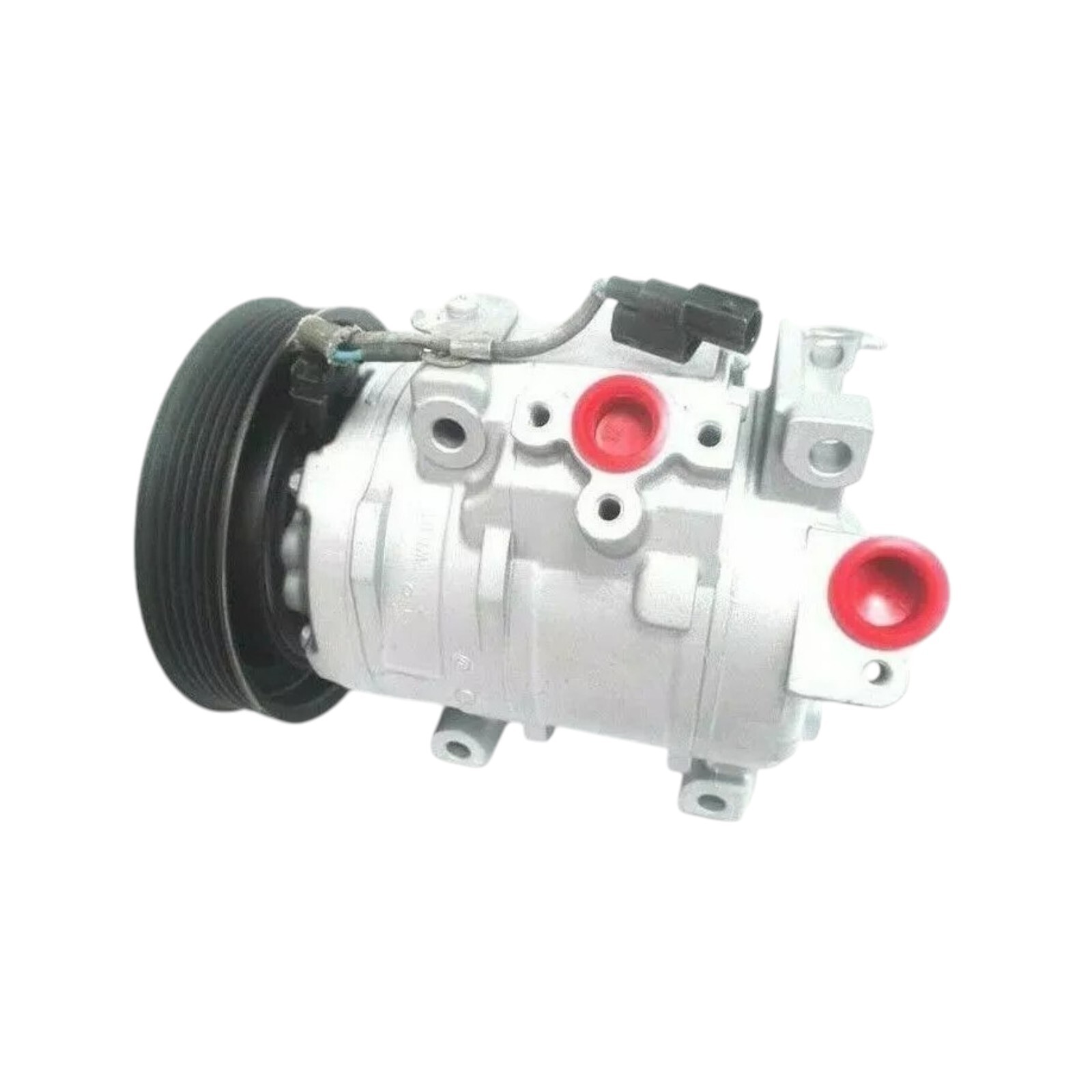

AC Compressor Kit Fits Honda Accord Crosstour V6 3.5L OEM 10SR15C KT7335

**OUR PRODUCT** You are purchasing a Reman compressor with clutch. **THE SYSTEM (COMPRESSOR INSTALLATION)** 3 Month Ac Warranty & Agreement Follow all local, state and federal regulations when servicing mobile A/C systems and read this instruction sheet prior to starting any repairs. Oil charges and oil types should be closely adhered to for proper A/C performance. If you are uncertain of **OIL CHARGE OR REFRIGERANT TOTAL SYSTEM  CHARGE** refer to the under hood decal or, OEM service manual. **USE ONLY R-12 OR R-134a REFRIGERANT.** **1\.** Remove compressor, receiver drier or accumulator, orifice tube or expansion valve. **2\.** Flush the condenser and evaporator using **NON-OIL BASED** A/C flush. On expansion valve systems **THE VALVE MUST BE REMOVED** before the evaporator can be flushed.  **FLUSHED CONDENSERS FROM OUTLET TO INLET AND EVAPORATORS FROM INLET TO OUTLET.** **WARNING: NEWER STYLE CONDENSER DESIGNS ARE VERY HARD, AND SOMETIME IT WOULD BE IMPOSSIBLE TO DO FLUSH, IN THOSE CASES IT IS SUGGESTED THAT IF THE COMPRESSOR HAS A MAJOR FAILURE THE CONDENSER SHOULD BE REPLACED.** **3\.** Drain all the oil from the new compressor and dispose of according to local, state and federal laws. **NOTE:** if you compressor has a drain plug you will need to open it up and drain what  oil is in there too, **4.**   Install half oil charge into the compressor and the remainder throughout the system. Turn compressor shaft 8-10 full revolutions to insure front seal and other internal parts are lubricated. **5.**   Install new receiver drier or accumulator and new orifice tube or expansion valve. **6.**   Evacuate the A/C system for a minimum of one hour. **7.**   After evacuation install half the refrigerant charge and let the system set for 1 minute. This will allow the refrigerant to pick up oil and spread more evenly throughout the system. **8.**   Start engine whit A/C controls on MAX AIR with door and windows open. **9.**   Add the remaining charge of refrigerant as called for by the manufacture. **RETURN POLICY** **Any warranty after 30 days, customer must pay all shipping charge.** **All returns must be pre- approved.** **SHIPPING** Free ground shipping to the continental US Shipment to Alaska, Hawaii, Puerto Rico, Virgin Island, American Samoa and Guam do not qualify for free shipping, shipping is $35 to these locations (USPS Only) **YOUR SATISFACTION IS OUR MAIN GOAL**

• Pulley Belt Type: Multi-Groove Serpentine
• Clutch Diameter: 5.250" 6 Groove
• Manufacturer Part Number: KT7335
• Oil Type: Pag 46
• Superseded Part Number: 5512752, 6512752, 7512752, 255714, 275798, TEM255714, TEM275798, 2011320AM, 2021755AM, 2022065, 2022065AM, C2110, C2110R, C2120, C2120R, ACC0433
• Placement on Vehicle: Front
• Brand: GEGOCOMP
• Type: A/C Compressor
• Interchange Part Number: 181, 10363561, 3022601, DW157335, 639363, CO 29030C, 157335, 158335, 140433, 140433C, 140433NC, 140433NIP, 7421100, 0610306
• Manufacturer Warranty: 1 Year
• OE/OEM Part Number: 38800RK1AA011, 38810R70A01, 38810R70A01, 38924R70A01, 38900R70A01, 4711634, 4711636, 4711637
• Compressor Drive Type: Belt Driven
• Country/Region of Manufacture: United States
• Pulley Groove Quantity: 6
