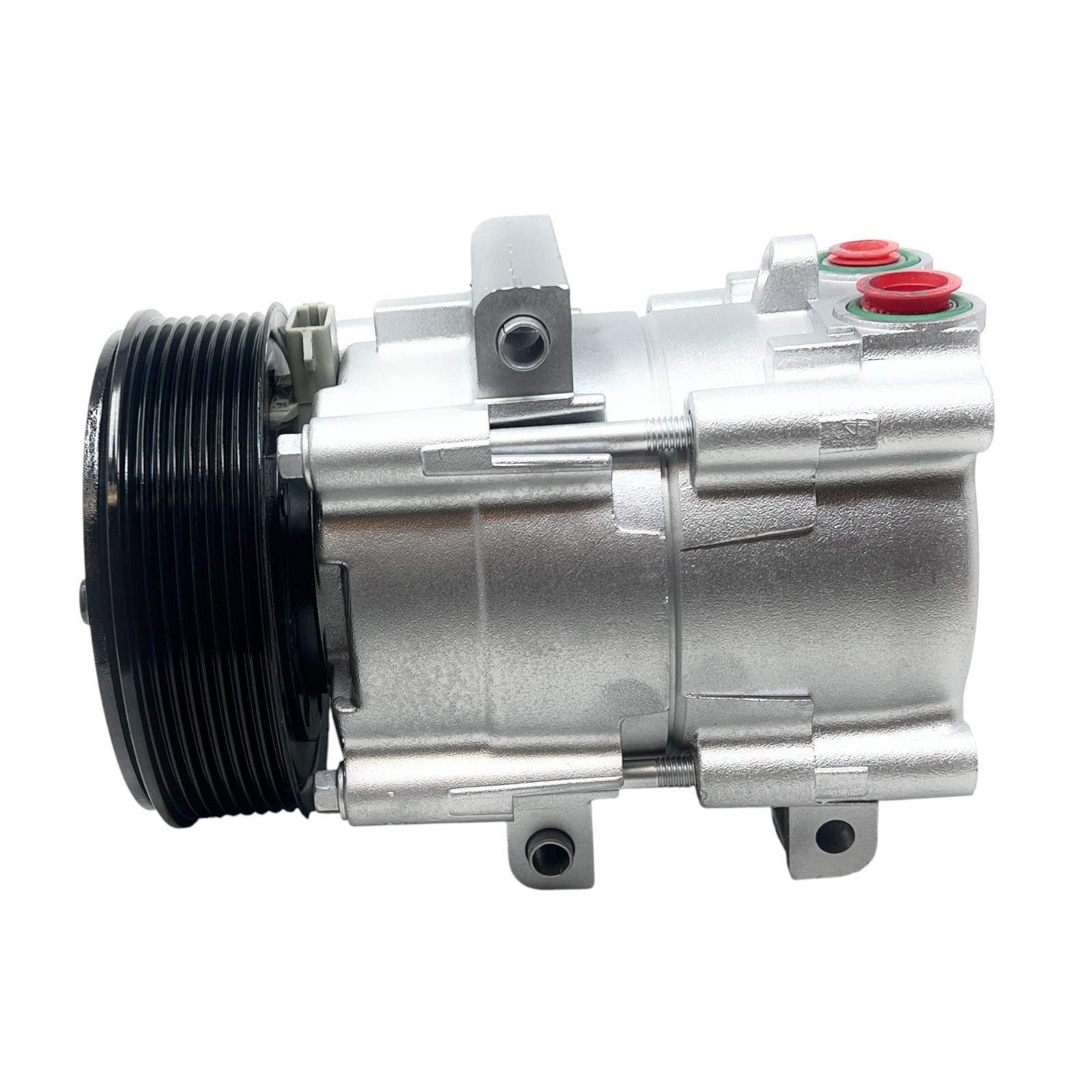

AC Compressor Kit Fits Ford F150 F250 Ford Lobo 1998-2001 OEM FS10 KT152-2
Price:
$154.99
Ships From:
Miami, Florida, US
Clicking on links to merchants on this site may result in this site earning a commission.
**OUR PRODUCT** You are purchasing a Reman compressor with clutch. **THE SYSTEM (COMPRESSOR INSTALLATION)** 3 Month Ac Warranty & Agreement Follow all local, state and federal regulations when servicing mobile A/C systems and read this instruction sheet prior to starting any repairs. Oil charges and oil types should be closely adhered to for proper A/C performance. If you are uncertain of **OIL CHARGE OR REFRIGERANT TOTAL SYSTEM CHARGE** refer to the under hood decal or, OEM service manual. **USE ONLY R-12 OR R-134a REFRIGERANT.** **1\.** Remove compressor, receiver drier or accumulator, orifice tube or expansion valve. **2\.** Flush the condenser and evaporator using **NON-OIL BASED** A/C flush. On expansion valve systems **THE VALVE MUST BE REMOVED** before the evaporator can be flushed. **FLUSHED CONDENSERS FROM OUTLET TO INLET AND EVAPORATORS FROM INLET TO OUTLET.** **WARNING: NEWER STYLE CONDENSER DESIGNS ARE VERY HARD, AND SOMETIME IT WOULD BE IMPOSSIBLE TO DO FLUSH, IN THOSE CASES IT IS SUGGESTED THAT IF THE COMPRESSOR HAS A MAJOR FAILURE THE CONDENSER SHOULD BE REPLACED.** **3\.** Drain all the oil from the new compressor and dispose of according to local, state and federal laws. **NOTE:** if you compressor has a drain plug you will need to open it up and drain what oil is in there too, **4.** Install half oil charge into the compressor and the remainder throughout the system. Turn compressor shaft 8-10 full revolutions to insure front seal and other internal parts are lubricated. **5.** Install new receiver drier or accumulator and new orifice tube or expansion valve. **6.** Evacuate the A/C system for a minimum of one hour. **7.** After evacuation install half the refrigerant charge and let the system set for 1 minute. This will allow the refrigerant to pick up oil and spread more evenly throughout the system. **8.** Start engine whit A/C controls on MAX AIR with door and windows open. **9.** Add the remaining charge of refrigerant as called for by the manufacture. **RETURN POLICY** **Any warranty after 30 days, customer must pay all shipping charge.** **All returns must be pre- approved.** **SHIPPING** Free ground shipping to the continental US Shipment to Alaska, Hawaii, Puerto Rico, Virgin Island, American Samoa and Guam do not qualify for free shipping, shipping is $35 to these locations (USPS Only) **YOUR SATISFACTION IS OUR MAIN GOAL**
- Pulley Belt Type: Multi-Groove Serpentine
- Clutch Diameter: 5.125 8 Groove
- Manufacturer Part Number: KT152-2
- Oil Type: Pag 46
- Superseded Part Number: CO 35112C, 57152, 58152, 618152, 4718121, 4718144, 2041028, 5511461, 5512140, 6511461, 6512140, 7511461, 7512140, 2010918, 2010918AM, 2010918BOXED, 2010918SAM, 2011298, 143028, 143028C, 143028NC, 143028NEW
- Placement on Vehicle: Front
- Brand: GEGOCOMP
- Type: A/C Compressor
- Interchange Part Number: YCC121RM, YCC163, YCC179, YCC214, YCC243RM, YCC247RM, YCC265RM, YCC281, YCC323, YCC336, YCC492, 10000535, 000101, 010022, 010473
- Manufacturer Warranty: 1 Year
- OE/OEM Part Number: 4C3Z19V703AA, 4C3Z19V703AB, 5C3Z19V703AA, 5U2Z19V703DD, 8U2Z19V703HARM, 8U2Z19V703MARM, 9U2Z19V703DRM, AU2Z19V703AA, AU2Z19V703AM, F7LZ19V703RA, F7LZ19V703RARM, G2MZ19V703AB, G2MZ19V703S, HU2Z19703M, HU2Z19703W, YCC121RM
- Pulley Groove Quantity: 8
- Country of Origin: United States
