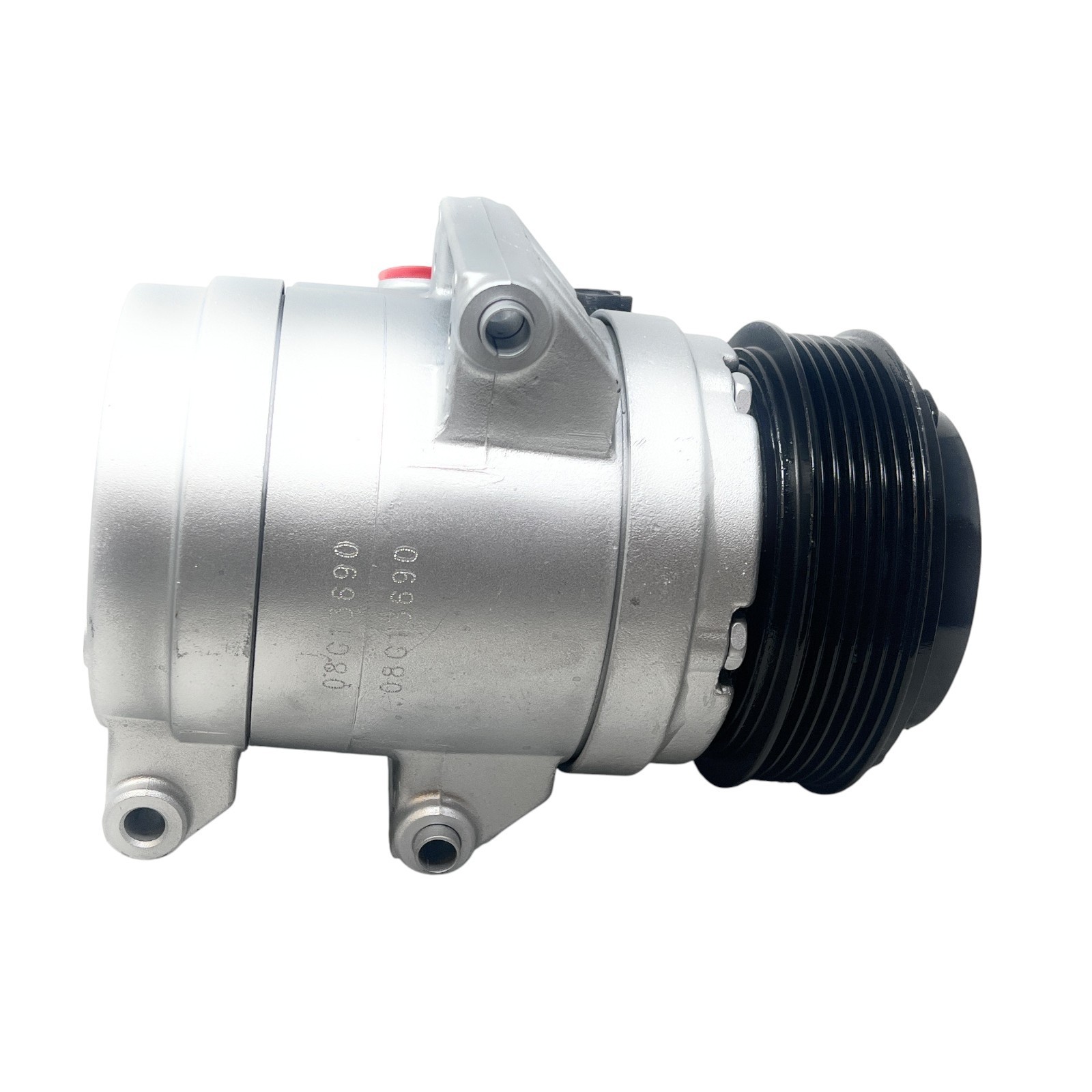

AC Compressor Fits Ford Fusion 2006-2012 Mercury Milan 2006-2011 OEM SP17

**OUR PRODUCT** You are purchasing a Reman compressor with clutch. **THE SYSTEM (COMPRESSOR** **INSTALLATION)** 3 Month Ac Warranty & Agreement Follow all local, state and federal regulations when servicing mobile A/C systems and read this instruction sheet prior to starting any repairs. Oil charges and oil types should be closely adhered to for proper A/C performance. If you are uncertain of **OIL CHARGE OR REFRIGERANT TOTAL SYSTEM  CHARGE** refer to the under hood decal or, OEM service manual. **USE ONLY R-12 OR** **R-134a REFRIGERANT.** **1\.** Remove compressor, receiver drier or accumulator, orifice tube or expansion valve. **2\.** Flush the condenser and evaporator using **NON-OIL** **BASED** A/C flush. On expansion valve systems **THE VALVE** **MUST BE REMOVED** before the evaporator can be flushed.  **FLUSHED** **CONDENSERS FROM OUTLET TO INLET AND EVAPORATORS FROM INLET TO OUTLET.** **WARNING: NEWER** **STYLE CONDENSER DESIGNS ARE VERY HARD, AND SOMETIME IT WOULD BE IMPOSSIBLE TO** **DO FLUSH, IN THOSE CASES IT IS SUGGESTED THAT IF THE COMPRESSOR HAS A MAJOR** **FAILURE THE CONDENSER SHOULD BE REPLACED.** **3\.** Drain all the oil from the new compressor and dispose of according to local, state and federal laws. **NOTE:** if you compressor has a drain plug you will need to open it up and drain what oil is in there too, **4.**   Install half oil charge into the compressor and the remainder throughout the system. Turn compressor shaft 8-10 full revolutions to insure front seal and other internal parts are lubricated. **5.**   Install new receiver drier or accumulator and new orifice tube or expansion valve. **6.**   Evacuate the A/C system for a minimum of one hour. **7.**   After evacuation install half the refrigerant charge and let the system set for 1 minute. This will allow the refrigerant to pick up oil and spread more evenly throughout the system. **8.**   Start engine whit A/C controls on MAX AIR with door and windows open. **9.**   Add the remaining charge of refrigerant as called for by the manufacture. **RETURN POLICY** **Any warranty after 30** **days, customer must pay all shipping charge.** **All returns must be** **pre- approved.** **SHIPPING** Free ground shipping to the continental US Shipment to Alaska, Hawaii, Puerto Rico, Virgin Island, American Samoa and Guam do not qualify for free shipping, shipping is $35 to these locations (USPS Only) **YOUR SATISFACTION IS OUR MAIN GOAL**

• Pulley Belt Type: Multi-Groove Serpentine
• Clutch Diameter: 4.500" 6 Groove
• Manufacturer Part Number: CO669
• Oil Type: Pag 46
• Superseded Part Number: 0713 10365881, 3018421, DW67669, DW67670, T68669, T68670, 255633, TEM255279, TEM255633, TEM275867, TEM275874, 140482, 140482C, 140482FD, 140482NC, 140482NEW, CP15204, C2099, C2099R, ACC0482
• Placement on Vehicle: Front
• Brand: GEGOCOMP
• Interchange Part Number: 639394, 67669, 5512757, 6512757, 7512757, CO 11160C, 0610281, 0610282, 610282, 2021993, 2021993AM
• Manufacturer Warranty: 1 Year
• OE/OEM Part Number: CS20037, 8E5Z19703A, 8E5Z19703C, YCC386
• NOTE: ONLY APPLIES TO AUTOMATIC TRANSMISSION
• Pulley Groove Quantity: 6
• Country of Origin: United States
