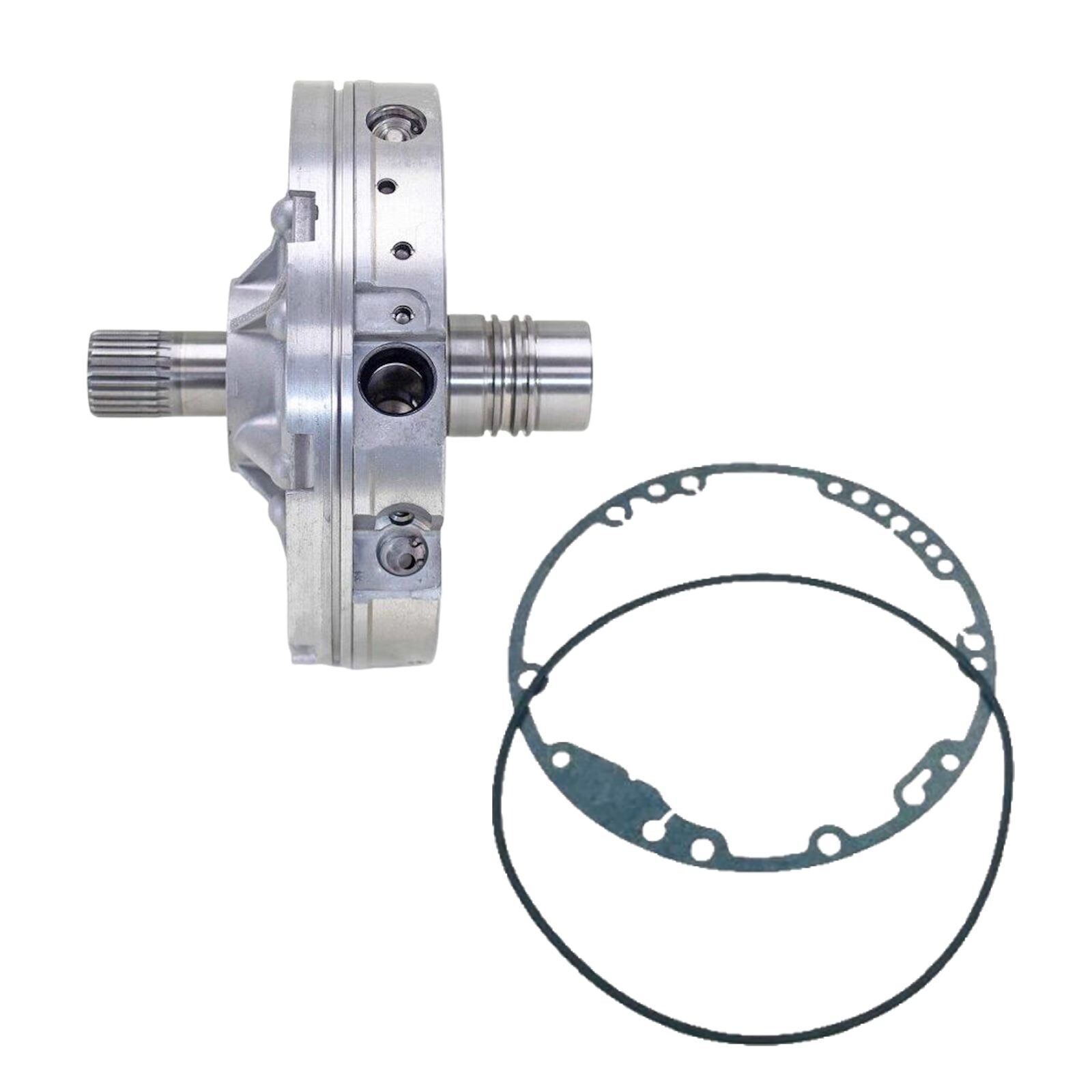

4L60E Rebuilt Pump Assembly 300mm 1998-03 Complete Ready to Use
Price:
$139.88
Ships From:
Canyon Country, California, US
Clicking on links to merchants on this site may result in this site earning a commission.
**Rebuilt Pump Assembly for 4L60E 4L65E 4L70E 300mm PWM** **1998-2003 GM Vehicles** **Specs** - 300mm input shaft length - Stator shaft sticks out pass front seal about 2" - Stator shaft overall length is 7 3/8" - Uses O-ring to case seal. - PWM type TCC - Bell housing bolts to the case ( 2 pc. case ). - Stator Cast # 611 Or 705 - Body Cast # 073 Or 555 - This pump fits 4L60E, 4L65E & 4L70E GM automatic transmissions with the 300mm input shaft converter setup. - The pump is completely disassembled, inspected, cleaned & painted. - All parts are checked to make sure they still meet OE specs. If not they are replaced. - The pump is assembled by a professional transmission rebuilder. **The following NEW parts are included:** - Bushings ( instelled ) - Oil Seal ( installed ) - Pump to Case Gasket - Pump to Case O-ring **Listing Contents** - Complete rebuilt pump assembly - Pump to case gasket - Pump to case o\_ring - 2 pump stator rings
- Fitment Type: Direct Replacement
- Items Included: Pump, gasket gasket and o-ring
- Manufacturer Part Number: 74500G, 4L60E Rebuilt Pump Assembly 300mm
- Mounting Hardware Included: No
- Material: Aluminum
- Superseded Part Number: 24224507, P74500G, 74500GA
- SPECS: Shaft sticks out pass front seal about 2"; Uses O-ring to case
- Brand: GM
- Type: Oil Pump
- Core Charge: None
- Manufacturer Warranty: 3 Months
- OE/OEM Part Number: 74500G
- Trans Model: 4L60E 4L65E 4L70E w/ bolt on bellhousing & O-ring
- Country/Region of Manufacture: Unknown
