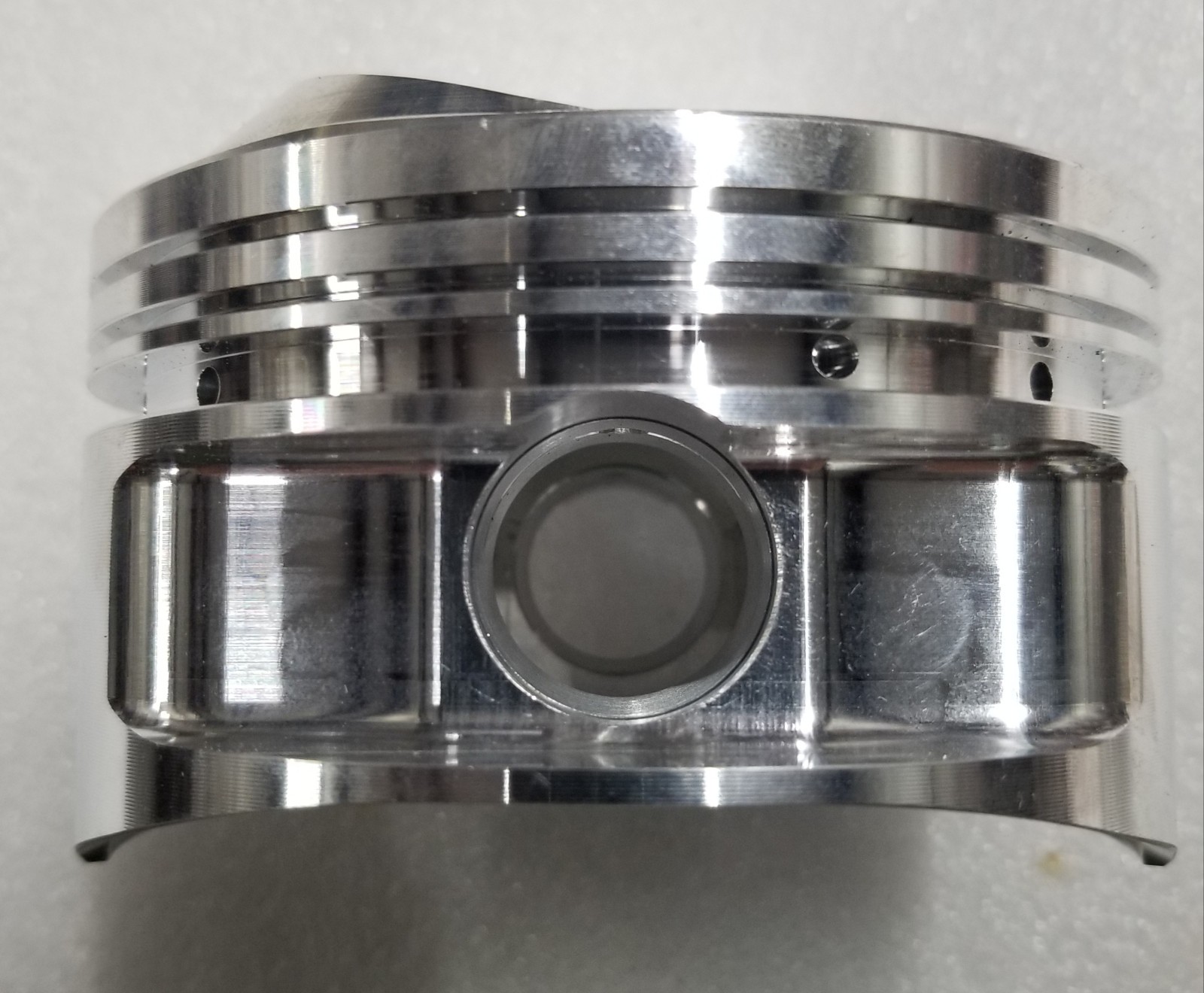

2 SBC chevrolet 400 +.030 JE Dome Pistons with pins 4.155 bore JE617L & JE617R
Price:
$70
Ships From:
Hallsville, Texas, US
Clicking on links to merchants on this site may result in this site earning a commission.
READ: NOS - We have for sale 2 JE 400 SBC pistons. 2 ONLY! Pistons were spares that were never used that I got in boxes of parts after a retired race team. JE617L & JE617R - They come with fitted pins, but NO pin retainers, cir-clips or spire-o-locks. These were longer rod use pistons, 6" most probably. Check the deck to \*pin center measurement listed below to match your needs. Contact JE directly if you are not familiar with the numbers, as the numbers change depending on combinations of 3.750" (stock) 400 stroke or possibly 3.875" strokers confused with 5.7", 6", or other rod length combinations. The deck to pin center or Height doesn't lie. To measure deck to pin center yourself, use a professional caliper or micrometer and measure from the flat of the piston to the pin bore upper diameter. Divide the.927 pin by 2 (.4635") and add the two measurements together. (Example: .770 + .4635 = 1.2335" = 1.234") Actual piston diameter 1/2" above skirt bottom = 4.150" (approx. .005 clearance with 4.155" bore) \*Pin Center to deck (flat) = 1.234" +/- .003 Deck (flat) to bottom center of skirt = 1.200" +/- .003 Pin O.D. = .927" Dome at highest point (Intake) =.375" Sold cheap and as-is. No returns. Free USPS shipping in Continental US only unless arraigned prior to sale by contacting me. PayPal or pre-mailed cashiers check.
- Brand: JE Pistons
- Type: Piston
- Performance Part: Yes
