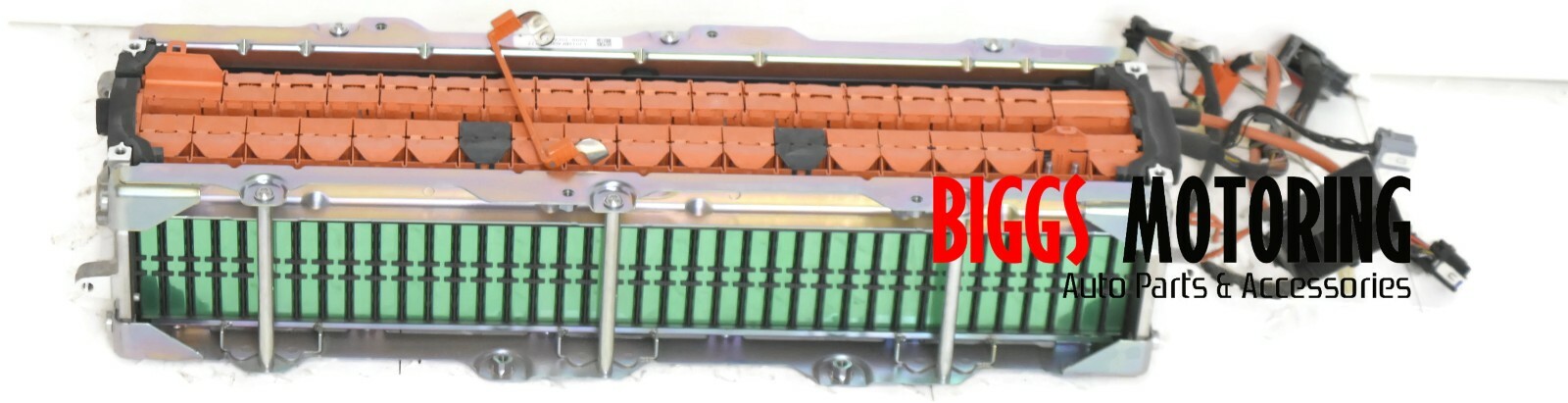

13-15 Ford C-Max Hybrid Battery 5Ah Battery Cell Module DG98-10C694-AF Cmax 38 C
Price:
$254.99
Ships From:
Lewis Center, Ohio, US
Clicking on links to merchants on this site may result in this site earning a commission.
**•** **Fa** **ctory Oem Used Hybrid Battery Cell Module** **•** **Item is In Good Working Order, Ready To Be Installed...** • Model: C-Max • Year: 2013-2015 • Part #: **DG98-10C694-AF** 38 CELLS IN THE BANK **Perfect for powering you sound system or solar etc ..** - ### MODULE SPECIFICATIONS Number of cells38Construction38 in-seriesLength25"Width7 1/2" (120mm)Height5 1/8" (85 mm)Weight33 lbs ### CELL SPECIFICATIONS Cathode materialLithium Ion Manganese Oxide, LiMn2O4Anode materialHard CarbonAverage voltage3.7VDCMaximum Voltage4.2VDCMinimum Voltage2.75VDCTerminal ThreadM5 0.8Amp Hour5.5 AhPeak current150AContinuous current100ALength4 3/4" (120mm)Width1/2" (13mm)Height without terminals3 3/8" (85 mm)Height with terminals4 3/16" (106mm)Weight9 oz
- Brand: Ford
- Manufacturer Warranty: 90 Days
- Fitment Type: Direct Replacement
- Voltage: 3.7V 5 ah cell
- Manufacturer Part Number: DG98-10C694-AF
