1200cc Fuel Injector for Honda OBD1 OBD2 B16 B18 B20 D15 D16 D18 F22 H22 w/clips

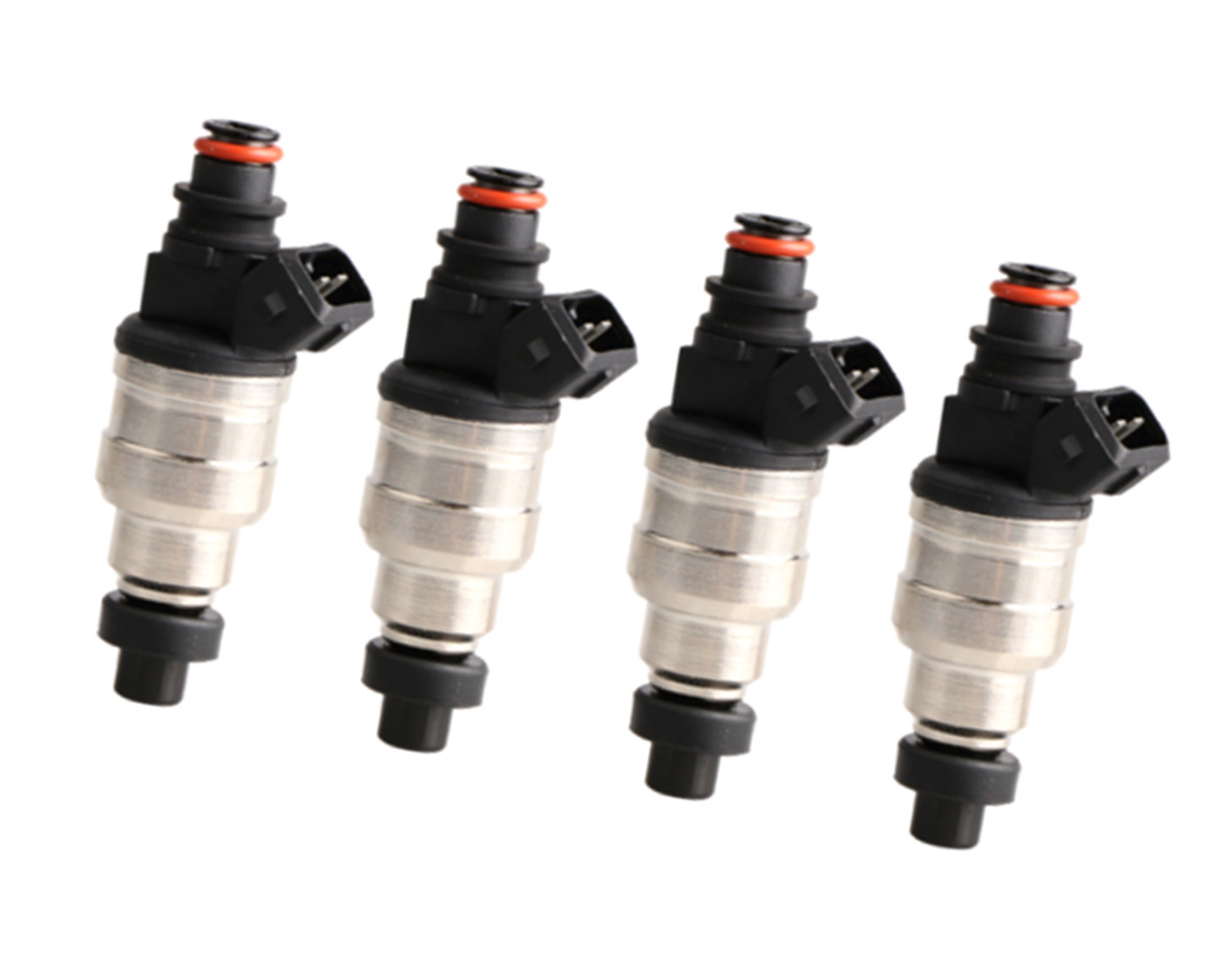

4 X Fuel Injectors Fit Honda OBD1 OBD2 B16 B18 B20 D15 D16 D18 F22 H22 w/clips Features · Plug and plug Inc OBD2 to OBD1 converter · Quantity: 4 Fuel Injectors · Condition: 100% BRAND NEW · O-Rings Included: Yes, preinstalled · Injector Design: Metal & composite plastic · Nozzle Design: 4 hole disc · Connector Type: EV1/OBD1 · Filter Design: Basket filter design at inlet Technical Data · Coil Resistance: 12.5 Ohms / High Impedance（NO RESISTOR BOX NEEDED） · Static Flow Rate: **114** lb/hr = **1200** cc/min @ 43.5PSI ( 300kPa ) · Gain: 0.12ms/MG · Offset: 0.055ms · Turn on time @ 14VDC: 1.14ms · Turn off time: 0.85ms @ 300KPa · Amperage: 1.0 Amps · Pressure: Min 30PSIG/ Max 100PSIG · Flow Matched within 2% · Length: 3" (76mm) · Top O-Ring Diameter: 11mm Fitment These high impedance injectors will fit all of the following models 1986-1991 Acura Integra (Must remove OEM resistor box) 1992-1993 Acura Integra RS/LS/GS 1.8L DOHC - B18A1 1992-1993 Acura Integra GSR 1.7L DOHC VTEC - B17A1 1999-1999 Acura CL 2.3L F23A1 VTEC SOHC (we include clips for free) 1994-2001 Acura Integra RS/LS/GS/SE 1.8L DOHC - B18B1 (1996+ REQUIRED clips,we include them for free.) 1994-2001 Acura Integra GSR 1.8L DOHC VTEC - B18C1(1996+ REQUIRED clips,we include them for free.) 1997-2001 Acura Integra Type R 1.8L DOHC VTEC - B18C5(REQUIRED clips,we include them for free.) 1988-1997 Honda Accord 4 Cylinder Engines (Must remove OEM resistor box) 1998-2002 Honda Accord 2.3L F23A5 DX Models (we include clips for free) 2001-2002 Honda Accord 2.3L F23A5 Value Package Models (we include clips for free) 2001-2002 Honda Civic (Must remove OEM resistor box) 1992-1995 Honda Civic 1.5L DX/LX SOHC - D15B7 1992-1995 Honda Civic 1.6L EX/SI SOHC VTEC - D16Z6 1996-2000 Honda Civic 1.6L SI B16A2 (required clips, we include for free) 1996-2000 Honda Civic 1.6L HX D16Y5(required clips, we include for free) 1996-2000 Honda Civic 1.6L CX DX LX D16Y7(required clips, we include for free) 1996-1998 Honda Civic 1.6L EX D16Y6(required clips, we include for free) 1993-1995 Honda Civic Del Sol S 1.5L SOHC - D15B7 1993-1995 Honda Civic Del Sol 1.6L Si SOHC VTEC - D16Z6 1994-1997 Honda Civic Del Sol 1.6L DOHC VTEC - B16A2 / B16A3 1996-1997 Honda Civic Del Sol 1.6L SI,VTEC B16A2 (required clips, we include for free) 1997-1998 Honda CRV 2.0L EX,LX B20B4/B20Z2 (required clips, we include clips for free) 1998-1998 Honda ODYSSEY 2.3L EX LX F23A7(required clips, we include clips for free) 1992-1996 Honda Prelude (Must remove OEM resistor box) 1997-2001 Honda Prelude 2.2L Base SH H22A4 (required clips, we include for free) Any OBD 0, OBD 1, B-Series, D-Series or H-Series Engine and Partial F-Series Engine Customers can run these high resistance injectors even in a low resistance setup.

• Country of Origin: China
• Brand: Unbranded
• Type: Fuel Injector
• Fuel Type: Gasoline
